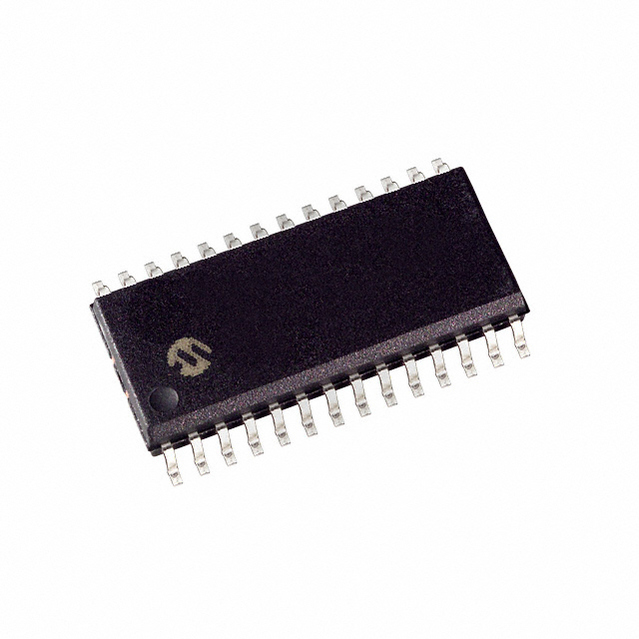

MICROCHIP PIC18F2680-I/SO 微控制器, 8位, 闪存, PIC18F2xxx, 40 MHz, 64 KB, 3.25 KB, 28 引脚, SOIC
The is an Enhanced Flash Microcontroller with ECAN™, 10-bit A/D and nanoWatt technology. The PIC18F2680 family introduces design enhancements that make this microcontroller a logical choice for many high-performance and power sensitive applications. The enhanced flash cells for both program memory and data EEPROM are rated to last for many thousands of erase/write cycles of up to 100000 for program memory and 1000000 for EEPROM. Data retention without refresh is conservatively estimated to be greater than 40 years. The PIC18F2680 family introduces an optional extension to the PIC18 instruction set, which adds 8 new instructions and an Indexed Addressing mode. This extension, enabled as a device configuration option, has been specifically designed to optimize re-entrant application code originally developed in high-level languages, such as C.
ESD sensitive device, take proper precaution while handling the device.
频率 40 MHz
电源电压DC 5.00 V, 5.50 V max
工作电压 4.2V ~ 5.5V
针脚数 28
时钟频率 40.0 MHz
RAM大小 3.25 KB
位数 8
耗散功率 1000 mW
FLASH内存容量 64 KB
I/O引脚数 25
存取时间 40.0 µs
内核架构 PIC
内核子架构 PIC18
模数转换数ADC 1
输入/输出数 25 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.2 V
安装方式 Surface Mount
引脚数 28
封装 SOIC-28
长度 17.87 mm
宽度 7.49 mm
高度 2.31 mm
封装 SOIC-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 工业, Computers & Computer Peripherals, Power Management, Industrial, 计算机和计算机周边, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 3A991.a.2
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC18F2680-I/SO Microchip 微芯 | 当前型号 | 当前型号 |
PIC18F2680-I/SP 微芯 | 完全替代 | PIC18F2680-I/SO和PIC18F2680-I/SP的区别 |
PIC18F2585-I/SO 微芯 | 类似代替 | PIC18F2680-I/SO和PIC18F2585-I/SO的区别 |
PIC18F2680-E/SO 微芯 | 类似代替 | PIC18F2680-I/SO和PIC18F2680-E/SO的区别 |
