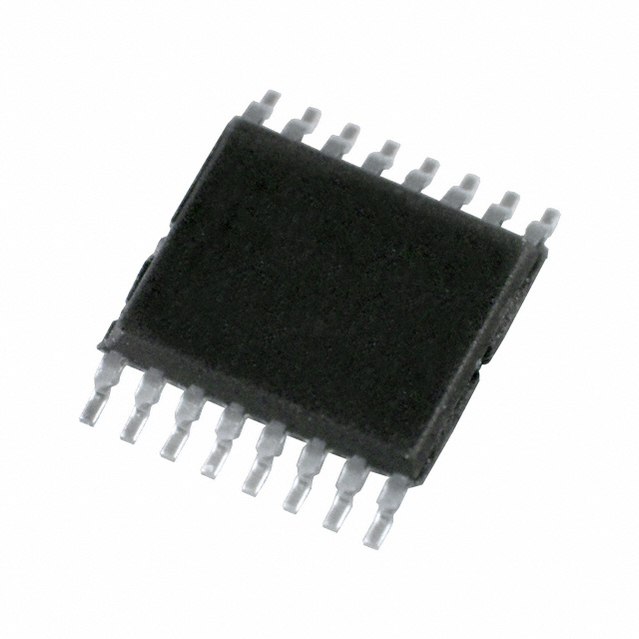

专用接口, I2C, I2C-Bus系统, 3 V, 3.6 V, TSSOP, 16 引脚
Overview
The primary function of the 4-bit 2-to-1 I²C multiplexer is to select either a 4-bit input or data from a non-volatile register and drive this value onto the output pins. One additional non-multiplexed register output is also provided. The non-multiplexed output is latched to prevent output value changes during I²C writes to the non-volatile register. A write protect input is provided to enable/disable the ability to write to the non-volatile register. An "override" input feature forces all outputs to logic 0.
MoreLess
## Features
* 4-bit 2-to-1 multiplexer, 1-bit latch DIP switch
* 5-bit internal non-volatile register
* Override input forces all outputs to logic 0
* Internal non-volatile register write/readable via I²C-bus
* Write-protect pin enables/disables I²C writes to register
* 2.5 V multiplexed outputs
* 3.3 V non-multiplexed output latched
* 5 V tolerant inputs
* Useful for "jumperless" configuration of PC motherboards
* Designed for use in Pentium Pro/Pentium II systems
## Features
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PCA8550PW,118 NXP 恩智浦 | 当前型号 | 当前型号 |
PCA8550PWR 德州仪器 | 功能相似 | PCA8550PW,118和PCA8550PWR的区别 |
PCA8550PW/DG,118 恩智浦 | 功能相似 | PCA8550PW,118和PCA8550PW/DG,118的区别 |
