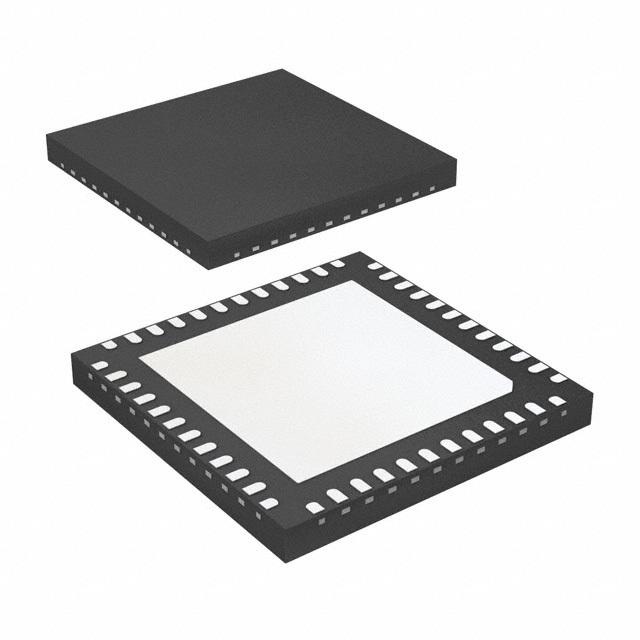

PI6LC4820ZDE

Clock Generator 48Pin TQFN EP

* 3.3V supply voltage * Crystal input: 25 MHz * Differential input: 25MHz, 156.25 MHz * Output frequencies of 312.5, 156.25, 125MHz supported * 9 LVPECL or LVDS bank selectable outputs * Low 1ps max integrated phase noise design 12kHz to 20MHz * Optional xtal or clock input selection * PLL Bypass mode for test * Power supply noise rejection: -50 dBc typical @ 156.25 MHz * Packaging Pb-free & Green: 48-lead 7×7mm TQFN

贸泽:
Clock Generators & Support Products Ethernet Network Clock Generator

艾睿:
Clock Generator 48-Pin TQFN EP

安富利:
Clock Generator 48-Pin TQFN EP

Verical:
Clock Generator 48-Pin TQFN EP
