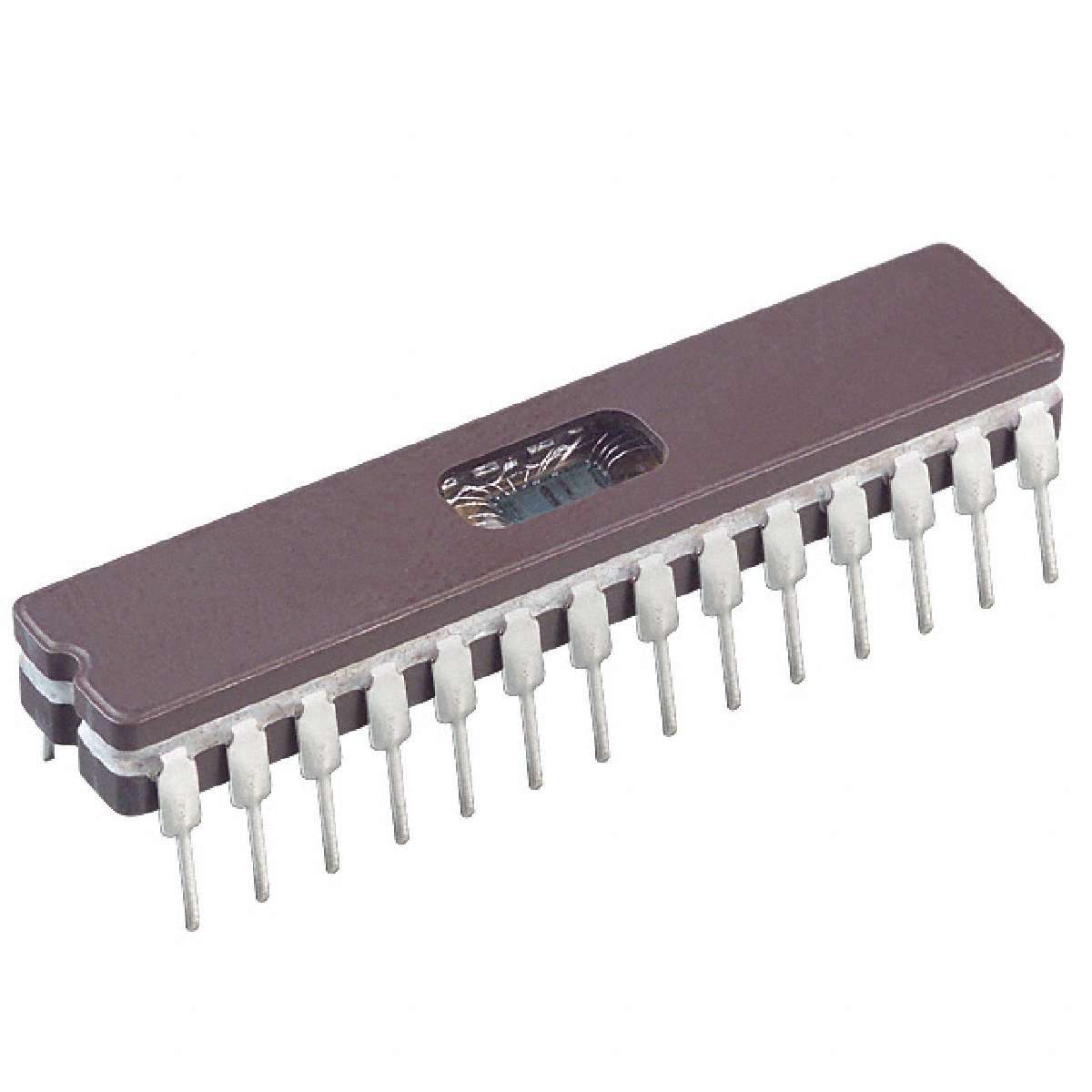

PIC16C745/JW

8位CMOS微控制器与USB 8-Bit CMOS Microcontrollers with USB

GENERAL DESCRIPTION

The PIC16C745/765 devices are low-cost, high-perfor mance, CMOS, fully-static, 8-bit microcontrollers in the PIC16CXX mid-range family.

All PICmicro® microcontrollers employ an advanced RISC architecture. The PIC16CXX microcontroller family has enhanced core features, eight-level deep stack and multiple internal and external interrupt sources.

The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit wide data. The two stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches, which require two cycles. A total of 35 instructions reduced instruction set are available. Additionally, a large register set gives some of the architectural innovations used to achieve a very high performance.
