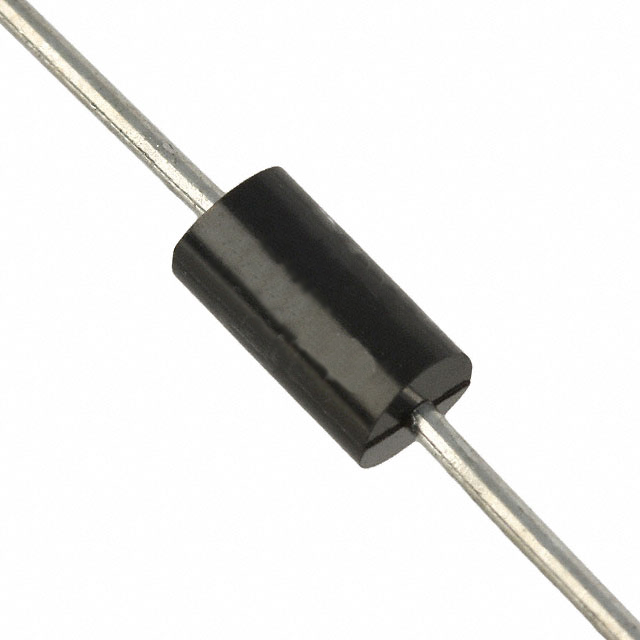

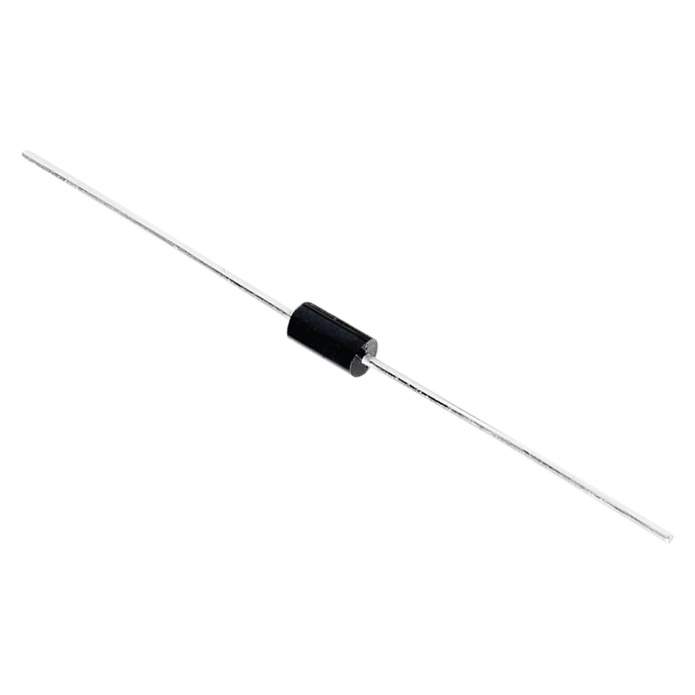

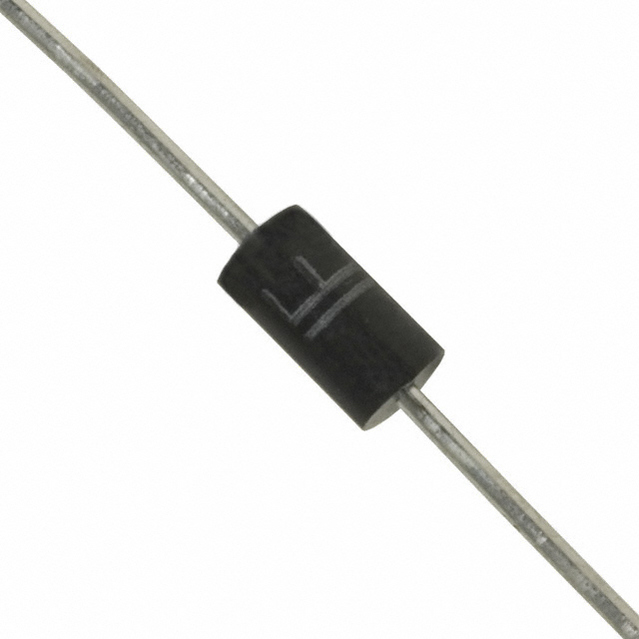

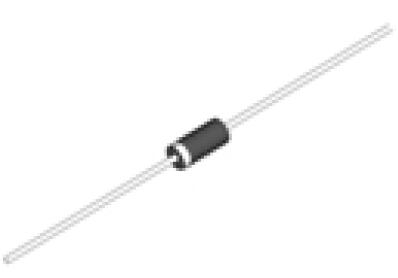

瞬态电压抑制二极管 Transient Voltage Suppression Diodes
Protect sensitive electronics against voltage transients induced by inductive load switching and lightning. Ideal for the protection of I/O interfaces, Vcc bus, and other integrated circuits.
FEATURES
• Breakdown voltage range 6.8 to 440 Volts
• Uni-directional and Bi-directional
• Glass passivated junction
• Excellent clamping capability
• 100% surge tested
• UL recognised
得捷:
TVS DIODE 64.1VWM 103VC DO204AC
立创商城:
Vrwm:64.1V 600W
艾睿:
Diode TVS Single Bi-Dir 64.1V 600W 2-Pin DO-15 T/R
Chip1Stop:
Diode TVS Single Bi-Dir 64.1V 600W 2-Pin DO-15 T/R
额定电压DC 7.50 V
额定功率 600 W
击穿电压 71.3 V
钳位电压 103 V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 71.3 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 DO-204AC
长度 7.6 mm
直径 3.60 mm
封装 DO-204AC
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
P6KE75CA Littelfuse 力特 | 当前型号 | 当前型号 |
P6KE75CAE3/TR13 美高森美 | 功能相似 | P6KE75CA和P6KE75CAE3/TR13的区别 |
