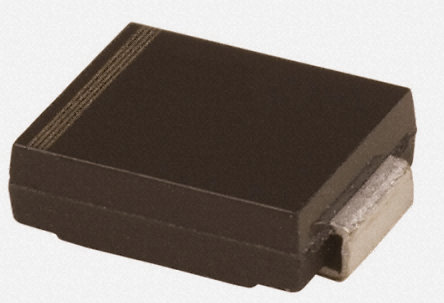

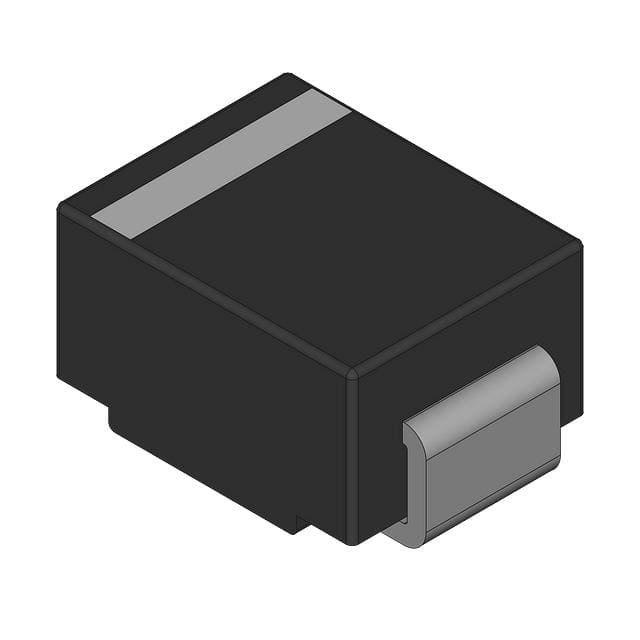

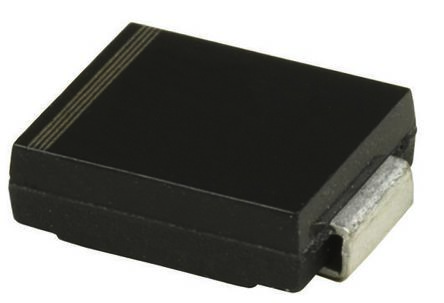

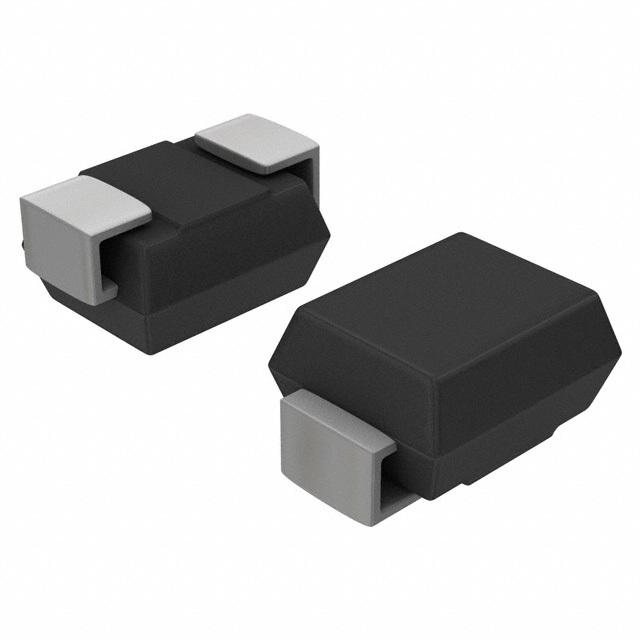

P6SMB56AT3G

ON SEMICONDUCTOR  P6SMB56AT3G  TVS二极管, TVS, P6SMB系列, 单向, 47.8 V, 77 V, DO-214AA, 2 引脚

The P6SMB series unidirectional Zener Transient Voltage Suppressor Diode designed to protect voltage sensitive components from high voltage and high energy transients. It has excellent clamping capability, high surge capability, low Zener impedance and fast response time.

.

5.8 to 171V Working peak reverse voltage range

.

600W @ 1ms Peak power

.

ESD rating of Class 3 >16kV per human body model

.

Maximum clamp voltage @ peak pulse current

.

<5µA above 10V Low leakage current

.

6.8 to 200V Standard Zener breakdown voltage range

.

<1ns Response time

.

-65 to 150°C Operating temperature range
