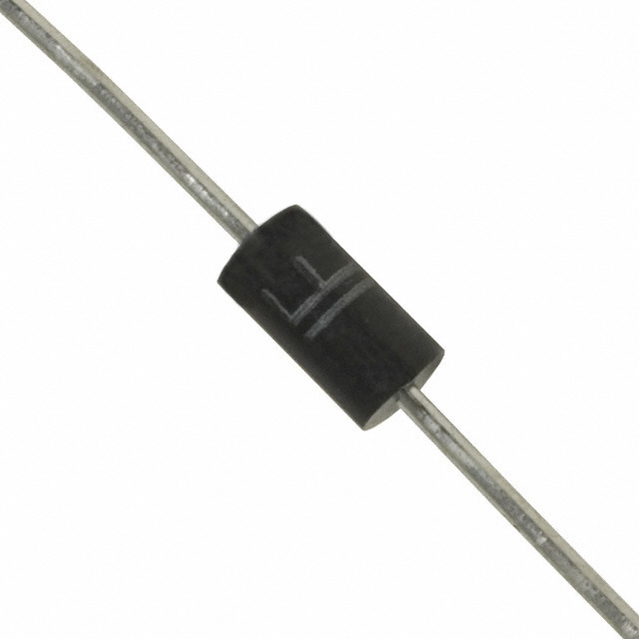

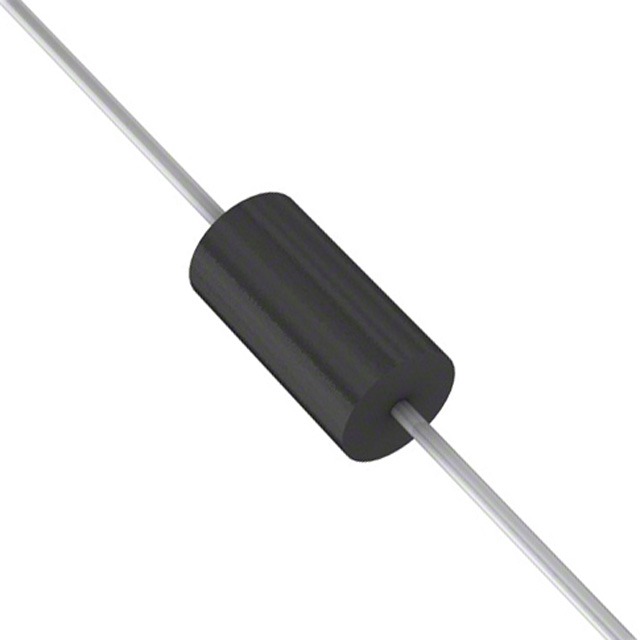

LITTELFUSE P6KE18CA 二极管, TVS, 600W, 18V, DO-15
The P6KE series Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits.
- .
- 5000W Peak pulse power capability at 10x1000µs waveform
- .
- Glass passivated junction
- .
- Excellent clamping capability
- .
- Low incremental surge resistance
- .
- 0.01% Repetition rate duty cycle
- .
- <1µA when VBR minimum >12V IR
- .
- ESD protection of data lines in accordance with IEC 61000-4-2
- .
- EFT protection of data lines in accordance with IEC 61000-4-4
- .
- Available in unidirectional and bidirectional
- .
- -55 to 175°C Operating junction temperature range
额定电压DC 18.0 V
工作电压 15.3 V
额定电流 24.2 A
额定功率 600 W
击穿电压 17.1 V
电路数 1
针脚数 2
耗散功率 600 W
钳位电压 25.2 V
测试电流 1 mA
最大反向击穿电压 18.9 V
正向电流 24.2 A
脉冲峰值功率 600 W
最小反向击穿电压 17.1 V
击穿电压 17.1 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 2
封装 DO-204AC-2
长度 7.6 mm
直径 3.60 mm
封装 DO-204AC-2
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, Industrial, 通用, Communications & Networking, Computers & Computer Peripherals, 通信与网络, 消费电子产品, Consumer Electronics, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
HTS代码 8541100080
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
P6KE18CA Littelfuse 力特 | 当前型号 | 当前型号 |
P6KE18CA-T 美台 | 类似代替 | P6KE18CA和P6KE18CA-T的区别 |
P6KE18CA-E3/1 威世 | 类似代替 | P6KE18CA和P6KE18CA-E3/1的区别 |
