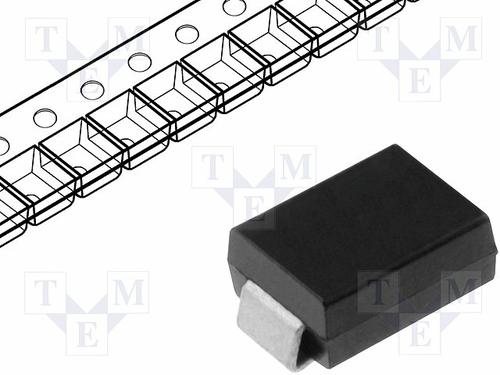

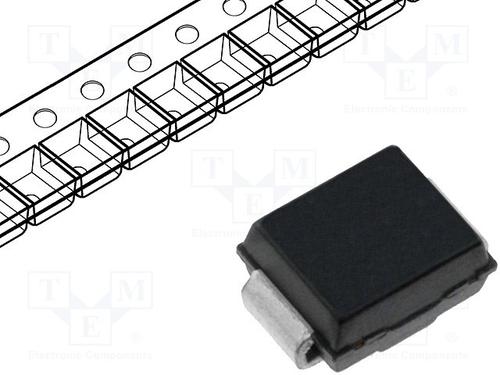

P6SMB13CA

P6SMB 系列 600 W 18.2 V 双向 表面贴装 TVS 二极管 - DO-214AA

18.2V 夹子 33.5A Ipp TVS - 表面贴装型 DO-214AA（SMBJ）

得捷:
TVS DIODE 11.1VWM 18.2VC DO214AA

立创商城:
Vrwm:11.1V 600W

贸泽:
ESD 抑制器/TVS 二极管 600W 13V 5% Bi-Directional

艾睿:
This P6SMB13CA TVS diode from Littelfuse is a must-have if your electronic equipment may be exposed to overvoltage conditions. This device&s;s maximum clamping voltage is 18.2 V and minimum breakdown voltage is 12.4 V. Its maximum leakage current is 1 μA. Its test current is 1 mA. Its peak pulse power dissipation is 600 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 11.1V 600W 2-Pin SMB T/R

TME:
Diode: transil; 600W; 13V; 33.5A; bidirectional; ±5%; DO214AA
