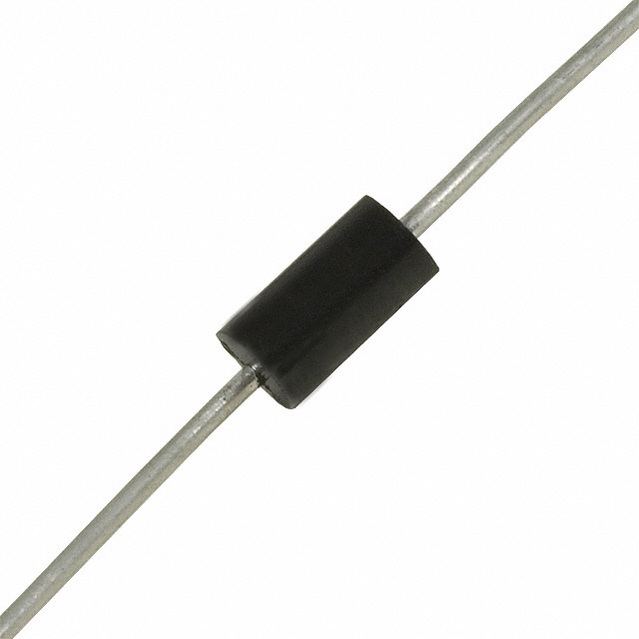

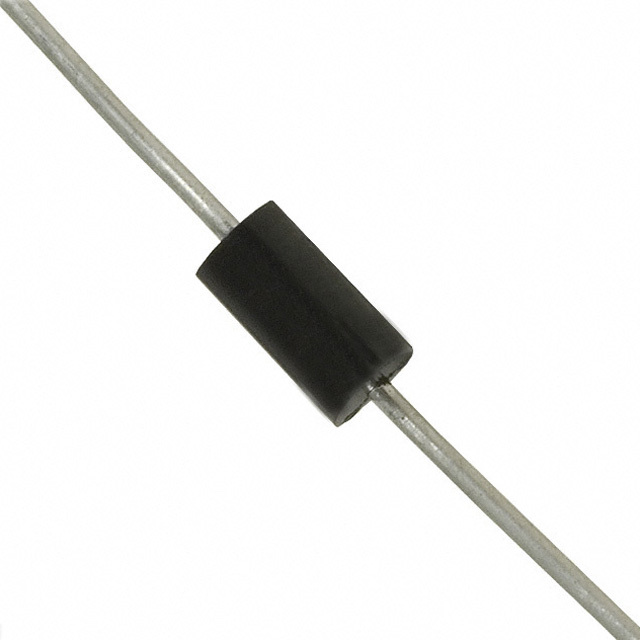

P6KE200ARL

P6KE 系列 600 W 18 V 单向 瞬态电压抑制器 - DO-15

353V 夹子 11.3A（8/20µs） Ipp TVS - 通孔 DO-15

得捷:
TVS DIODE 171VWM 353VC DO15

立创商城:
Vrwm:171V 600W

艾睿:
Sleep easy, never worry about surges again with this P6KE200ARL TVS diode from STMicroelectronics. This device&s;s maximum clamping voltage is 353 V and minimum breakdown voltage is 190 V. Its maximum leakage current is 500 μA. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

安富利:
Diode TVS Single Uni-Dir 171V 600W 2-Pin DO-15 T/R

Chip1Stop:
Diode TVS Single Uni-Dir 171V 600W 2-Pin DO-15 T/R

Verical:
Diode TVS Single Uni-Dir 171V 600W 2-Pin DO-15 T/R
