硅雪崩二极管 - 400W轴向引线型瞬态电压抑制器 Silicon Avalanche Diodes - 400W Axial Leaded Transient Voltage Supressors
Do not risk expensive equipment and machinery from surges with this TVS diode from . Its peak pulse power dissipation is 400 W. Its maximum leakage current is 1 μA. This device"s maximum clamping voltage is 125 V and minimum breakdown voltage is 86.5 V. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
额定电压DC 91.0 V
工作电压 77.8 V
额定功率 400 W
击穿电压 91 V
电路数 1
耗散功率 400 W
钳位电压 125 V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 86.5 V
击穿电压 86.5 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 DO-204AL

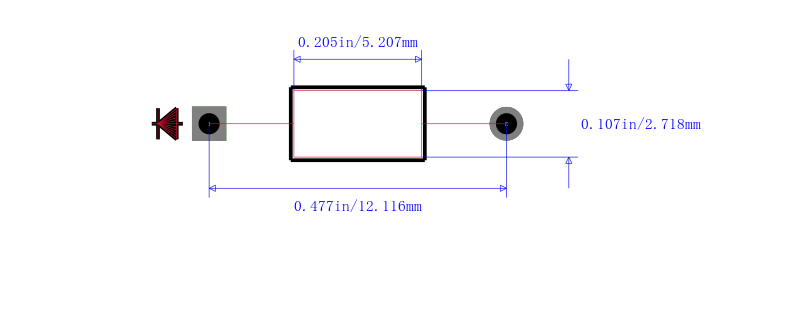

长度 5.2 mm
直径 2.70 mm
封装 DO-204AL
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
P4KE91CA Littelfuse 力特 | 当前型号 | 当前型号 |
P4KE91CA-B 力特 | 功能相似 | P4KE91CA和P4KE91CA-B的区别 |
