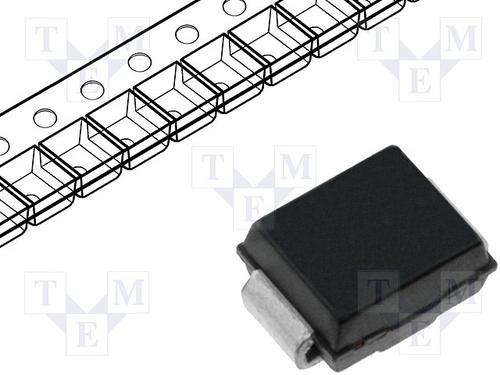

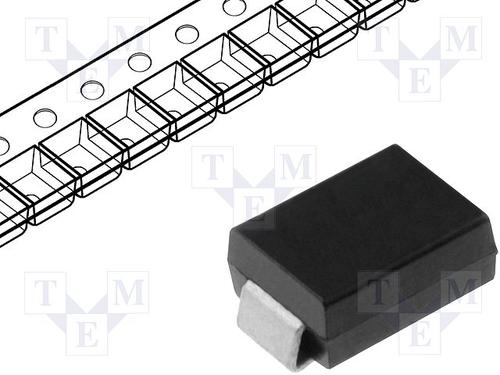

P6SMB160A

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

Description

The P6SMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

得捷:
TVS DIODE 136VWM 219VC DO214AA

立创商城:
Vrwm:136V 600W

贸泽:
ESD Suppressors / TVS Diodes TVS SURF MT DO214AA

艾睿:
Take the extra step in your circuitry by implementing surge protection with this P6SMB160A TVS diode from Littelfuse. Its test current is 1 mA. This device&s;s maximum clamping voltage is 219 V and minimum breakdown voltage is 152 V. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 600 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.

Chip1Stop:
Diode TVS Single Uni-Dir 136V 600W 2-Pin SMB T/R

TME:
Diode: transil; 600W; 160V; 2.8A; unidirectional; ±5%; DO214AA
