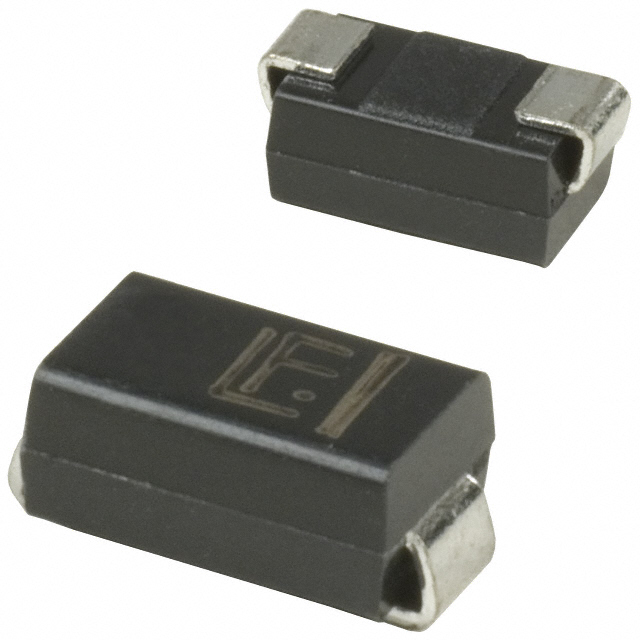

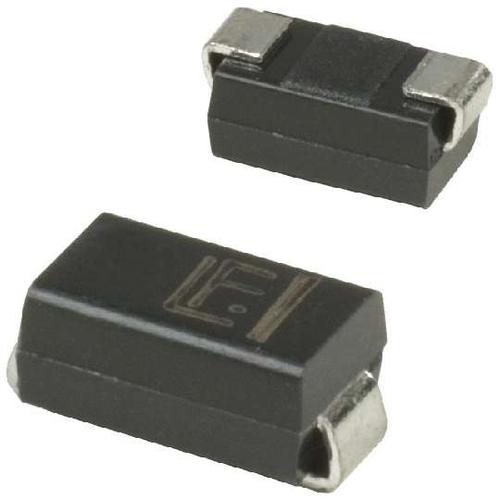

P4SMA350A

硅雪崩二极管 - 400W表面贴装瞬态电压抑制器 Silicon Avalanche Diodes - 400W Surface Mount Transient Voltage Supressors

400W Surface Mount Transient Voltage Supressors

FEATURES

•RoHScompliant

•For surface mounted applications in order to optimize board space

•Low profile package

•Built-in strain relief

•Glass passivated junction

•Low Inductance

•Excellent clamping capability

•Repetition Rate duty cycle:0.01%

•Fast response time: typically less than 1.0ps from 0 Volts to VBR for unidirectional types

•Typical IR less than 1µA above 10V

•High temperature soldering: 250˚C/10 seconds at terminals

DEVICES FOR BIPOLAR APPLICATION

For Bidirectional use Suffix CA for types P4SMA6.8CA thru types P4SMA550CA

Electrical characteristics apply in both directions
