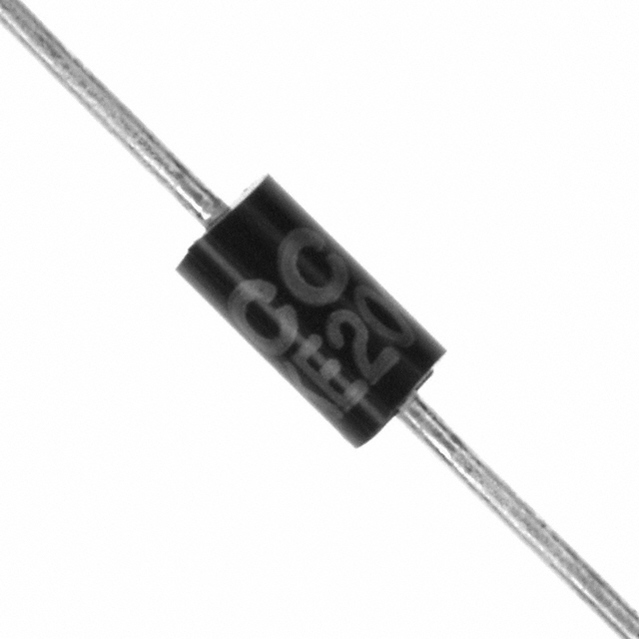

P6KE200CA-TP

ESD 抑制器/TVS 二极管 BI-DIR 600W 2.2A

274V Clamp 2.2A Ipp Tvs Diode Through Hole DO-15

得捷:
TVS DIODE 171VWM 274VC DO15

立创商城:
双向 Vrwm:171V 600W

贸泽:
ESD 抑制器/TVS 二极管 BI-DIR 600W 2.2A

艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this P6KE200CA-TP TVS diode from Micro Commercial Components. This device&s;s maximum clamping voltage is 274 V and minimum breakdown voltage is 190 V. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 171V 600W 2-Pin DO-15 T/R

Verical:
Diode TVS Single Bi-Dir 171V 600W 2-Pin DO-15 T/R
