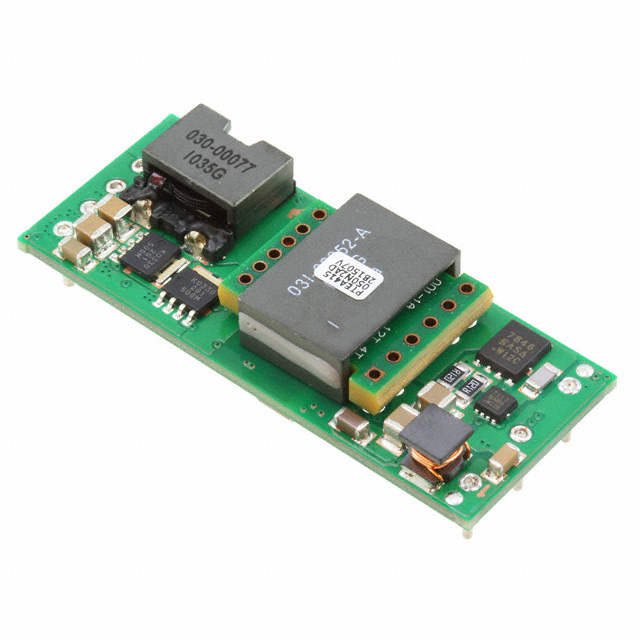

Module DC-DC 48Vin 1Out 5V 15A 75W 8Pin DIP Module
Provide the ability to switch between voltages by using this step down DC to DC converter and switching regulator module. It has a voltage of 5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. The component will be shipped in tray format.
得捷:
DC DC CONVERTER 5V 75W
艾睿:
Provide the ability to switch between voltages by using this step down PTEA415050N2AD DC to DC converter and switching regulator module. It has a voltage of 5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. The component will be shipped in tray format.
Chip1Stop:
Module DC-DC 48VIN 1-OUT 5V 15A 75W 8-Pin DIP Module
Verical:
Module DC-DC 48VIN 1-OUT 5V 15A 75W 8-Pin DIP Module Tray
Win Source:
DC DC CONVERTER 5V 75W
额定功率 75 W
输出接口数 1
输出电压 5 V
输出电流 15 A
调节输出数 1
输出功率 75 W
隔离电压 1.5 kV
输入电压Max 75 V
输入电压Min 36 V
输出电流Max 15 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 36V ~ 75V
安装方式 Through Hole
引脚数 8
封装 DIP-8
高度 13.21 mm
封装 DIP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tray
RoHS标准
含铅标准 Contains Lead
