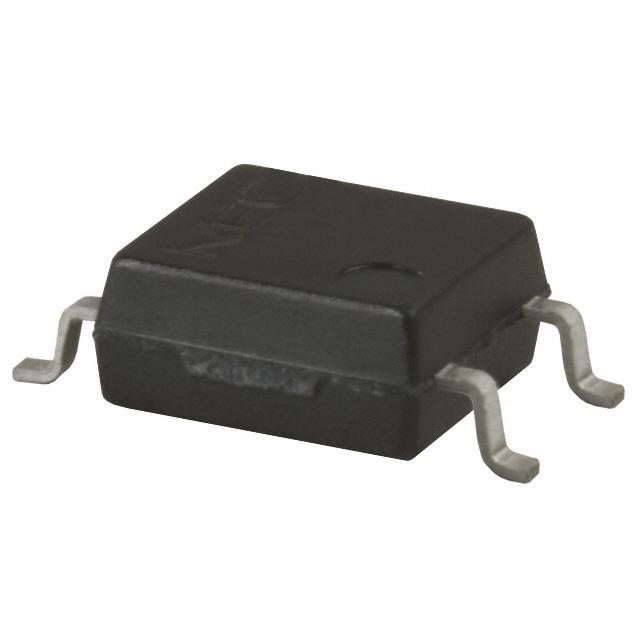

Optocoupler DC-IN 1CH Transistor DC-OUT 4Pin SOP T/R
DESCRIPTION
The PS2701-1 is an opticallycoupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor.
This package is SOP Small Outline Package type and has shield effect to cut off ambient light.
It is designed for high densitymounting applications.
FEATURES
•High isolation voltage BV =3 750 Vr.m.s.
•SOP Small Outline Package type
•High-speed switching tr= 3 µs TYP., tf= 5 µs TYP.
•Ordering number of taping product: , F4
•Safety standards
•UL approved: File No. E72422
•BSI approved: File No. 8219/8220
•CSA approved: File No. CA 101391
•DIN EN60747-5-2 VDE0884 Part2 approved Option
APPLICATIONS
•Hybrid IC
•Measuring instruments
•Power supply
•Programmable logic controllers
上升/下降时间 3µs, 5µs
输入电压DC 1.10 V
输出电压 ≤70.0 V
电路数 1
通道数 1
正向电压 1.1 V
耗散功率 150 mW
上升时间 3 µs
隔离电压 3750 Vrms
正向电流 50 mA
输出电压Max 40 V
正向电压Max 1.4 V
正向电流Max 50 mA
下降时间 5 µs
工作温度Max 100 ℃
工作温度Min -55 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 4
封装 SMD-4
封装 SMD-4
工作温度 -55℃ ~ 100℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
