PS2561DL2-1Y-V-W-A

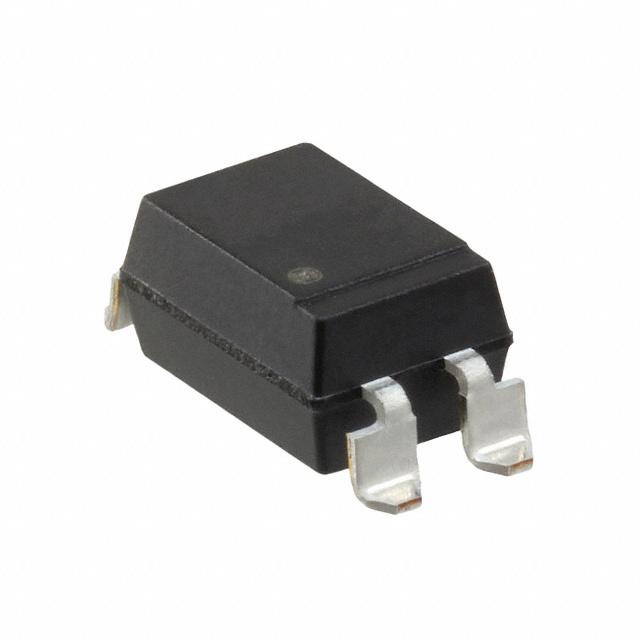

PS2561DL2-1Y-V-W-A图片1
PS2561DL2-1Y-V-W-A概述

Transistor Output Optocouplers 4Pin SMT Long Creepage Single Tr DC High Temp 110℃ BSI VDE, Coupler RoHS

Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD


得捷:
OPTOISOLATOR 5KV TRANS 4SMD


贸泽:
Transistor Output Optocouplers 4pin SMT Long Creepage Single Tr DC High Temp 110degC BSI VDE, Coupler RoHS


艾睿:
Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD T/R


安富利:
Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin DIP SMD Magazine


PS2561DL2-1Y-V-W-A中文资料参数规格
技术参数

上升/下降时间 3µs, 5µs

通道数 1

正向电压 1.2 V

耗散功率 150 mW

隔离电压 5000 Vrms

正向电流 40 mA

输出电压Max 80 V

输入电流Min 1000 mA

正向电压Max 1.4 V

耗散功率Max 150 mW

封装参数

安装方式 Surface Mount

封装 SMD-4

外形尺寸

封装 SMD-4

物理参数

工作温度 -55℃ ~ 110℃

其他

产品生命周期 Discontinued at Digi-Key

包装方式 Tube

符合标准

RoHS标准

含铅标准 无铅

数据手册

在线购买PS2561DL2-1Y-V-W-A
型号: PS2561DL2-1Y-V-W-A
制造商: California Eastern Laboratories
描述:Transistor Output Optocouplers 4Pin SMT Long Creepage Single Tr DC High Temp 110℃ BSI VDE, Coupler RoHS
