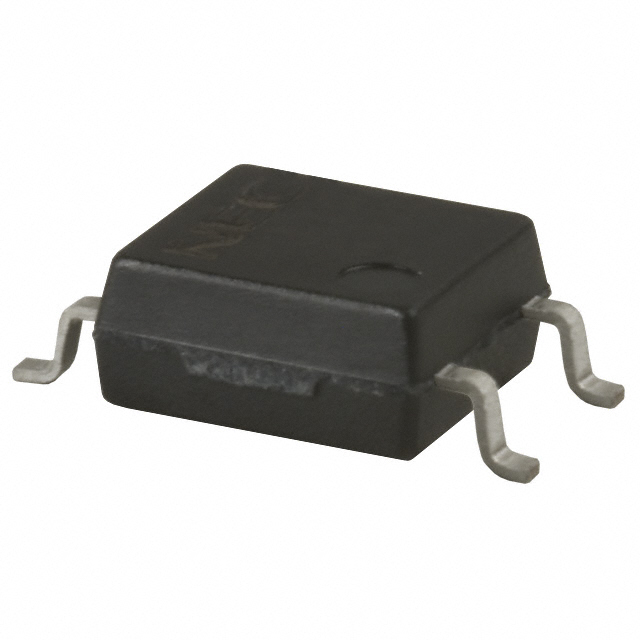

PS2701-1-A

PS2701 系列 单通道 40 V 3750 Vrms 高 隔离 光电耦合器 - SOIC-4

DESCRIPTION

The PS2701-1 is an opticallycoupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor.

This package is SOP Small Outline Package type and has shield effect to cut off ambient light.

It is designed for high densitymounting applications.

FEATURES

•High isolation voltage BV =3 750 Vr.m.s.

•SOP Small Outline Package type

•High-speed switching tr= 3 µs TYP., tf= 5 µs TYP.

•Ordering number of taping product: PS2701-1-F3, F4

•Safety standards

•UL approved: File No. E72422

•BSI approved: File No. 8219/8220

•CSA approved: File No. CA 101391

•DIN EN60747-5-2 VDE0884 Part2 approved Option

APPLICATIONS

•Hybrid IC

•Measuring instruments

•Power supply

•Programmable logic controllers
