PC354N1J000F

80 V 50% CTR 最小值 表面贴装 AC 输入 光电耦合器 - MFP-4

■ Description

PC354NJ0000F Series contains an IRED optically coupled to a phototransistor.

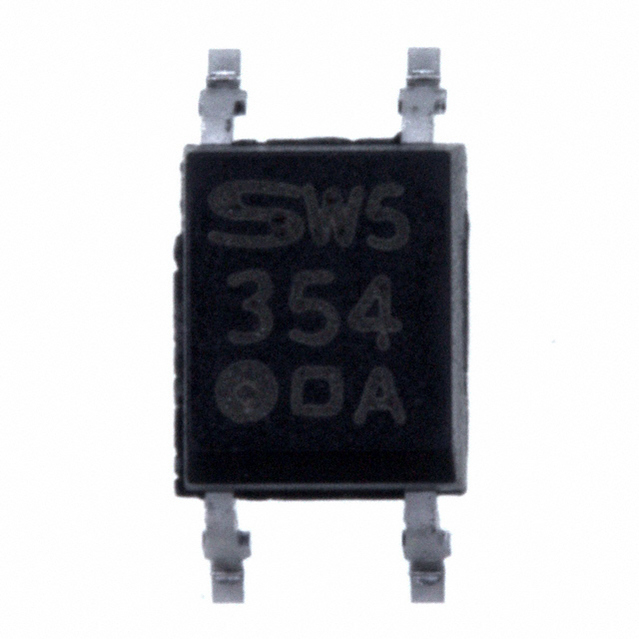

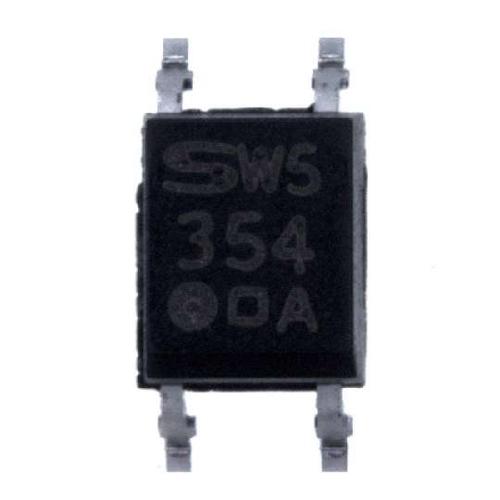

It is packaged in a 4-pin Mini-flat package. Input-output isolation voltagerms is 3.75kV.

Collector-emitter voltage is 80V and CTR is 20% to 400% at input current of ±1mA.

■ Features

1\. 4-pin Mini-flat package

2\. Double transfer mold package Ideal for Flow Soldering

3\. AC input type

4\. High collector-emitter voltage VCEO : 80V

5\. High isolation voltage between input and output Visorms : 3.75kV

6\. Lead-free and RoHS directive compliant

■ Applications

1\. Hybrid substrates that require high density mounting.

2\. Programmable controllers
