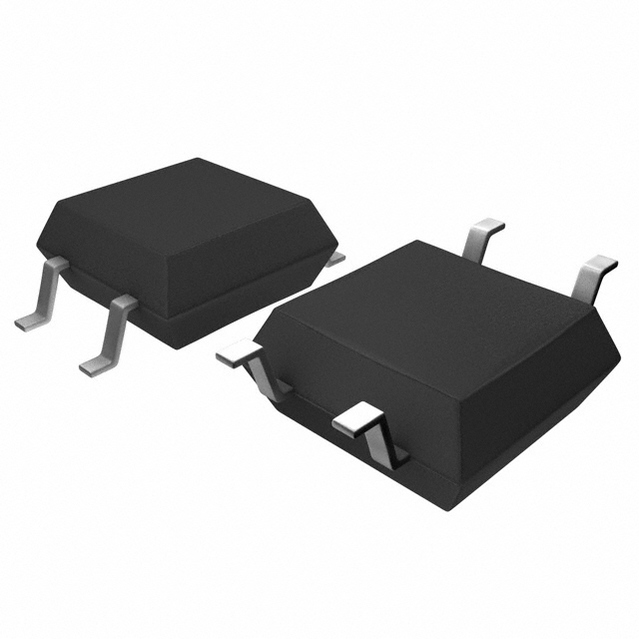

PS2802-1-F3

Optocoupler DC-IN 1CH Darlington DC-OUT 4Pin SSOP T/R

DESCRIPTION

The PS2802-1 and PS2802-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington-connected photo transistor in a plastic SOP for high densityapplications. This package has shield effectto cut off ambient light.

FEATURES

•  High isolation voltage BV =2 500 Vr.m.s.

•  Small and thin package 4,16-pin SOP, Pin pitch 1.27 mm

•  High current transfer ratio CTR=2 000 % TYP. @ IF= 1 mA, VCE= 2V

•  Ordering number of tape product: , F4, PS2802-4-F3, F4

•  Safetystandards: PS2802-1, -4

    •  UL approved: File No. E72422 S

    •  BSI approved: No. 8188, 8189

    •  VDE0884 approved Option: PS2802-4 only

APPLICATIONS

•  Programmable logic controllers

•  Measuring instruments

•  Hybrid IC
