PC817X1J000F

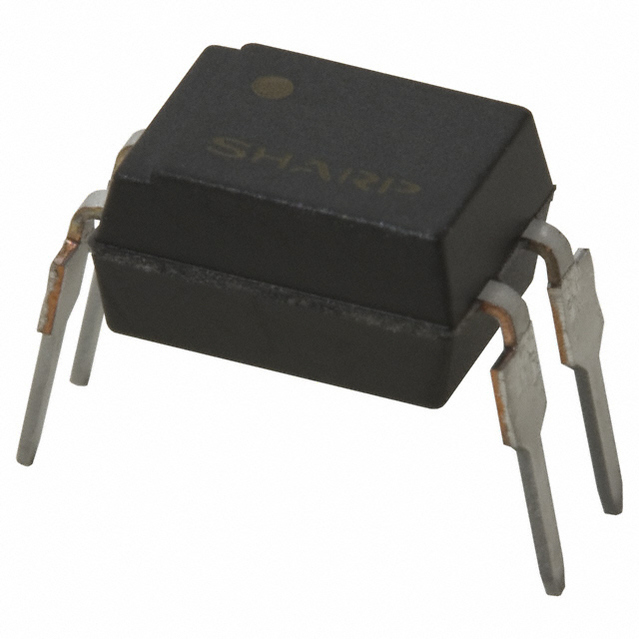

SHARP  PC817X1J000F  光电耦合器, 晶体管输出, 1通道, DIP, 4 引脚, 50 mA, 5 kV, 50 %

■ Description

PC817XJ0000F Series contains an IRED optically coupled to a phototransistor. It is packaged in a 4pin DIP, available in wide-lead spacing option and SMT gullwing lead-form option. Input-output isolation voltagerms is 5.0kV. Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA.

■Features

1\. 4pin DIP package

2\. Double transfer mold package Ideal for Flow Soldering

3\. High collector-emitter voltage VCEO:80V

4\. Current transfer ratio CTR : MIN. 50% at IF=5 mA,VCE=5V

5\. Several CTR ranks available

6\. High isolation voltage between input and output

Visorms: 5.0 kV

7\. Lead-free and RoHS directive compliant
