P1167.104NLT

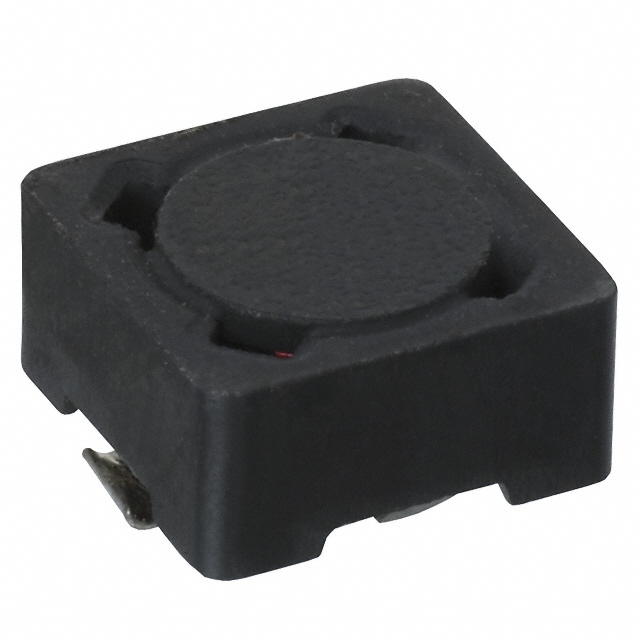

P1167.104NLT图片1
P1167.104NLT图片2
P1167.104NLT图片3
P1167.104NLT图片4
P1167.104NLT图片5
P1167.104NLT图片6
P1167.104NLT图片7
P1167.104NLT概述

电感, 屏蔽, 100UH, 0.63A, 20%

100 µH 屏蔽 绕线 器 630 mA 390 毫欧最大 非标准 -


得捷:
FIXED IND 100UH 630MA 390MOHM SM


贸泽:
Fixed Inductors 100uH 20%


e络盟:
电感, 屏蔽, 100UH, 0.63A, 20%


艾睿:
This power P1167.104NLT surface mount inductor from Pulse is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 130 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 75u/100uRated H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 6.2M Hz. This SMD inductor has a maximum DC current of 630m A with a maximum resistance of 390m Ohm. It has a tolerance of 20%. This product is 7.54 mm long, 4.5 mm tall and 7.54 mm deep. This device is made with wirewound technology.


安富利:
Ind Power Shielded Wirewound 100uH 20% 100KHz 630mA T/R


Chip1Stop:
Inductor Power Shielded Wirewound 100uH/75uH 20% 100KHz 630mA 390mOhm DCR T/R


Verical:
Inductor Power Shielded Wirewound 100uH/75uH 20% 100KHz 0.63A 0.39Ohm DCR T/R


儒卓力:
**P1167 100uH 630mA 20% **


CDI:
SHIELDED DRUM CORE INDUCTOR


P1167.104NLT中文资料参数规格
技术参数

额定电流 630 mA

容差 ±20 %

电感 100 µH

自谐频率 6.2 MHz

产品系列 P1167

屏蔽 Yes

电感公差 ±20 %

测试频率 100 kHz

电阻DC) ≤390 mΩ

工作温度Max 130 ℃

工作温度Min 40 ℃

电阻DC Max 0.39 Ω

封装参数

安装方式 Surface Mount

封装 7.5 mm x 7.5 mm

外形尺寸

长度 7.54 mm

宽度 7.54 mm

高度 4.5 mm

封装 7.5 mm x 7.5 mm

物理参数

重量 0.9 g

工作温度 -40℃ ~ 130℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买P1167.104NLT
型号: P1167.104NLT
描述:电感, 屏蔽, 100UH, 0.63A, 20%
替代型号P1167.104NLT
型号/品牌 代替类型 替代型号对比

P1167.104NLT

Pulse Electronics 普思电子

当前型号

当前型号

P1167.104T

普思电子

类似代替

P1167.104NLT和P1167.104T的区别

SLF7045T-101MR50

东电化

功能相似

P1167.104NLT和SLF7045T-101MR50的区别

CDRH74-101MC

胜美达

功能相似

P1167.104NLT和CDRH74-101MC的区别
