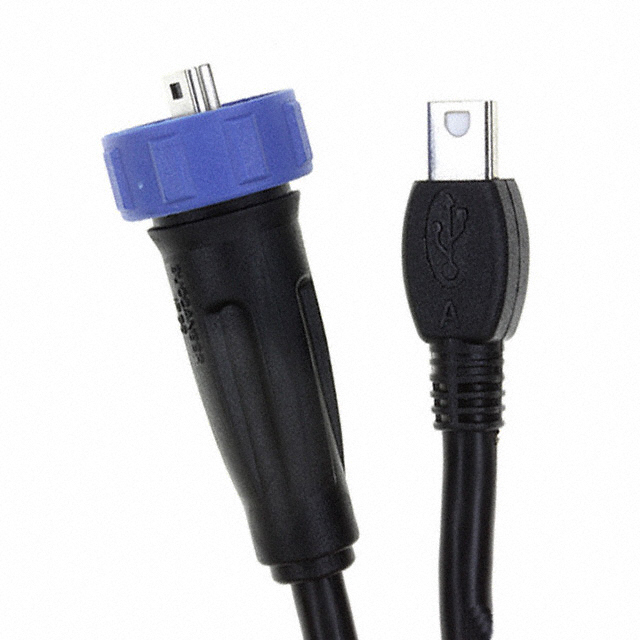

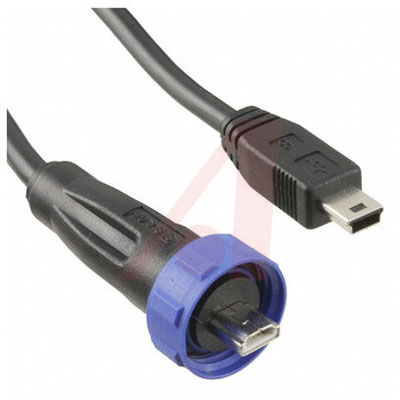

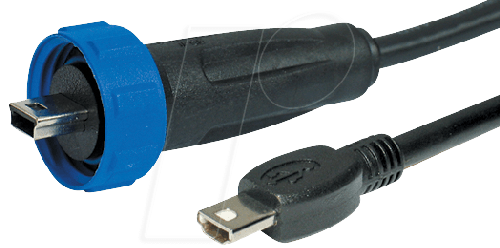

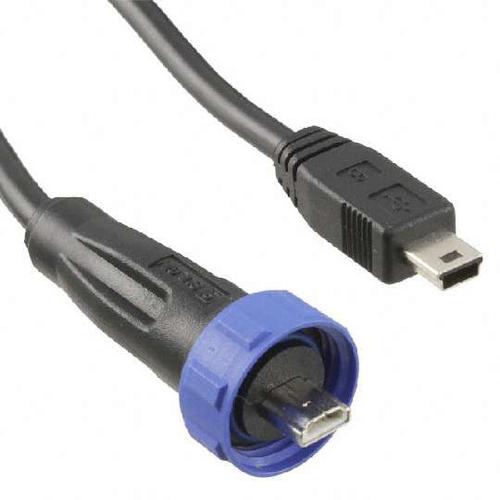

PX0442/4M50

USB A型至迷你USB B型

The Mini USB Buccaneer® provides a compact solution for USB connections in industrial environments. Utilizing industry standard Mini ‘B’ connections, the connector provides an IP68 sealed, secure and robust connection performing to USB V2.0, for use in areas where dust or water could prove detrimental to system operation. Fully shielded, providing good levels of noise immunity and EMI protection. Cables are overmolded offering secure, tamper-proof connections.

**Features:**

* USB V2.0, Data Rates Up to 400 Mbs

* Shielded System, High Noise Immunity

* Over-Molded Cables, Tamperproof Construction

* Fully Over-Molded Construction

* Mates with PX0443, PX0446, PX0447, PX0456, PX0457 and PX0458

**

Specifications:

.

*

* Sealing: IP68, EN60529

* Poles: 5

* Mating: Cycles 5,000

* Op. Temp.: –20°C to +70°C

* Flammability: UL94V-0

* Performance: USB V2.0
