瞬态电压抑制二极管 Transient Voltage Suppression Diodes
22.5V 夹子 18.2A Ipp TVS - 表面贴装型 DO-214AC(SMA)
得捷:
TVS DIODE 13.6VWM 22.5VC DO214AC
立创商城:
Vrwm:13.6V 400W
贸泽:
ESD 抑制器/TVS 二极管 13.6V 400W 5% Uni-directional
艾睿:
Littelfuse&s;s P4SMA16A TVS diode is designed to protect electronic components and circuits from electrical overstress from overvoltage and electrostatic discharge. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 400 W. This device&s;s maximum clamping voltage is 22.5 V and minimum breakdown voltage is 15.2 V. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
Chip1Stop:
Diode TVS Single Uni-Dir 13.6V 400W 2-Pin SMA T/R
额定电压DC 16.0 V
工作电压 13.6 V
额定功率 400 W
击穿电压 15.2 V
电路数 1
钳位电压 22.5 V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 15.2 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

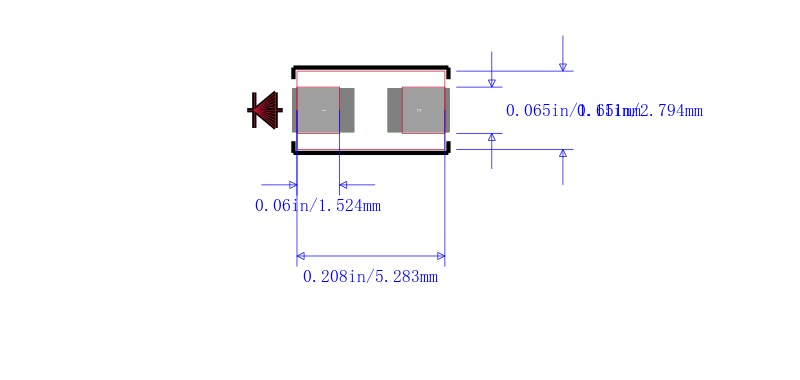

封装 DO-214AC-2
长度 5.28 mm
宽度 2.79 mm
高度 2.29 mm
封装 DO-214AC-2
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
P4SMA16A Littelfuse 力特 | 当前型号 | 当前型号 |
SMAJ60A 力特 | 类似代替 | P4SMA16A和SMAJ60A的区别 |
SMAJ16A 力特 | 类似代替 | P4SMA16A和SMAJ16A的区别 |
SMAJ16A-E3/61 威世 | 功能相似 | P4SMA16A和SMAJ16A-E3/61的区别 |
