P1167.273NLT

27uH ±20% 1.2A

27 µH 屏蔽 绕线 器 1.2 A 130 毫欧最大 非标准 -

立创商城:
27uH ±20% 1.2A 130mΩ

得捷:
FIXED IND 27UH 1.2A 130 MOHM SMD

贸泽:
Fixed Inductors 27uH 20%

艾睿:

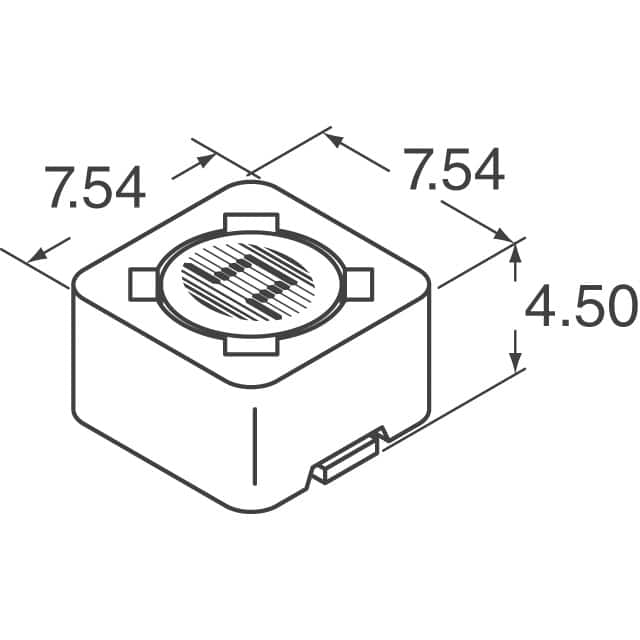

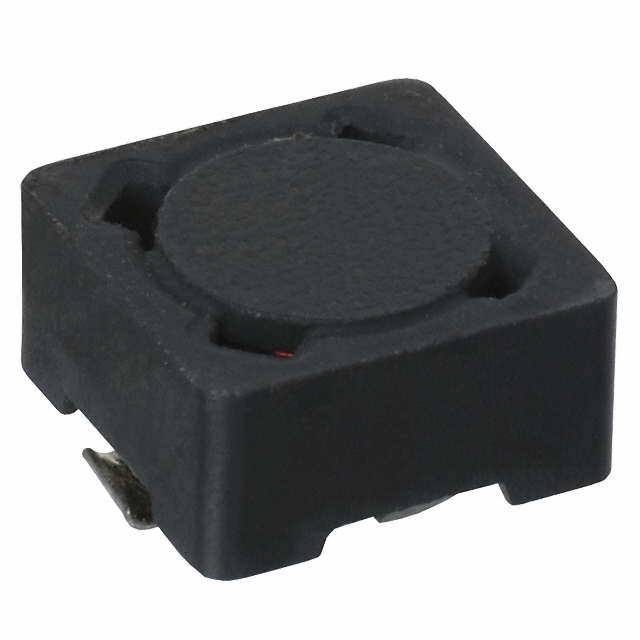

Save valuable space on a PCB with this power P1167.273NLT surface mount inductor from Pulse. This SMD inductor has an operating temperature range of -40 °C to 130 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 1.2 A with a maximum resistance of 130m Ohm. This product is 7.54 mm long, 4.5 mm tall and 7.54 mm deep. It has an inductance of 20.3u/27uRated H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 15M Hz. This device utilizes wirewound technology.

安富利:
Ind Power Shielded Wirewound 27uH 20% 100KHz 1.2A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 20.3uH/27uH 20% 100KHz 1.2A 130mOhm DCR T/R

Verical:
Inductor Power Shielded Wirewound 27uH/20.3uH 20% 100KHz 1.2A 0.13Ohm DCR T/R

CDI:
SHIELDED DRUM CORE INDUCTOR
