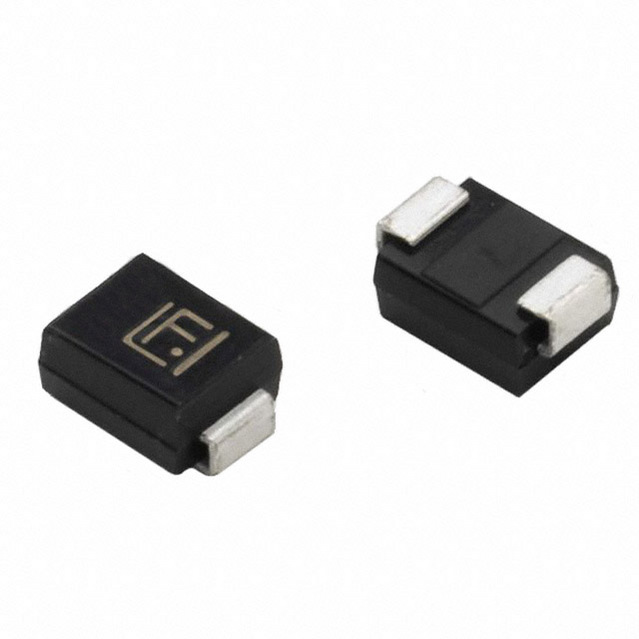

P6SMB43A

P6SMB 系列 59.3 V 0.6 kW 表面贴装 单向 瞬态电压抑制二极管 - DO-214AA

The from is a 600W, unidirectional transient voltage suppressor in DO-214AA package. It features excellent clamping capability, low incremental surge resistance, low profile package, built-in strain relief and fast response time. The P6SMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits.

.

Reverse standoff voltage VR is 36.8V

.

Breakdown voltage VBR is 40.9V minimum and 45.2V maximum at 1mA

.

Maximum reverse leakage is 1µA

.

Maximum clamping voltage VC is 59.3V

.

Maximum peak pulse current is 10.3A

.

Power dissipation on infinite heat sink at TL=50°C is 5W

.

Peak forward surge current IFSM is 100A

.

Maximum instantaneous forward voltage is 5V

.

Operating temperature range from -65°C to +175°C, IEC-61000-4-2 ESD 30KV air, 30KV contact

.

ESD protection of data lines with IEC 61000-4-2 and EFT protection with IEC 61000-4-4 standard
