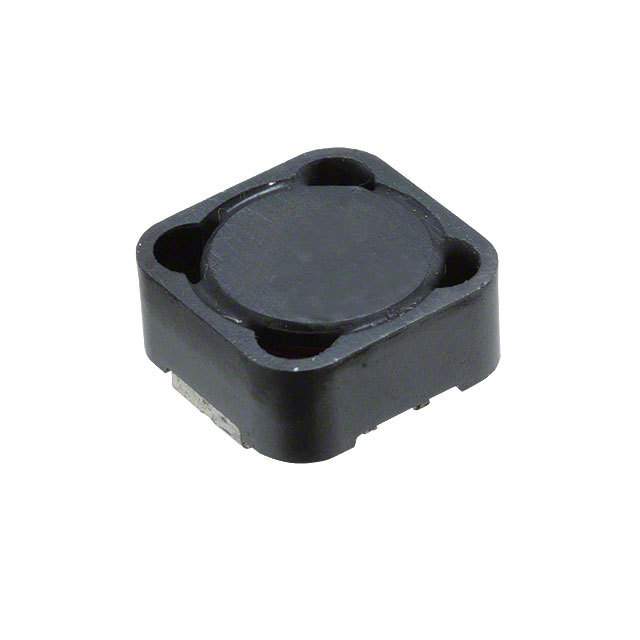

P1170.224NLT

220uH ±20% 1A

220µH Shielded Wirewound Inductor 1A 400mOhm Max Nonstandard

得捷:
FIXED IND 220UH 1A 400 MOHM SMD

立创商城:
220uH ±20% 1A

艾睿:
This power P1170.224NLT surface mount inductor from Pulse is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 130 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 20%. This product is 12.24 mm long, 6 mm tall and 12.24 mm deep. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 400m Ohm. This device is made with wirewound technology. It has an inductance of 165u/220uRated H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 3.5M Hz.

安富利:
Ind Power Shielded Wirewound 220uH 20% 100KHz 1A T/R

Verical:
Inductor Power Shielded Wirewound 220uH/165uH 20% 100KHz 1A 0.4Ohm DCR T/R

CDI:
SHIELDED DRUM CORE INDUCTOR
