PTMA210152MV1AUMA1

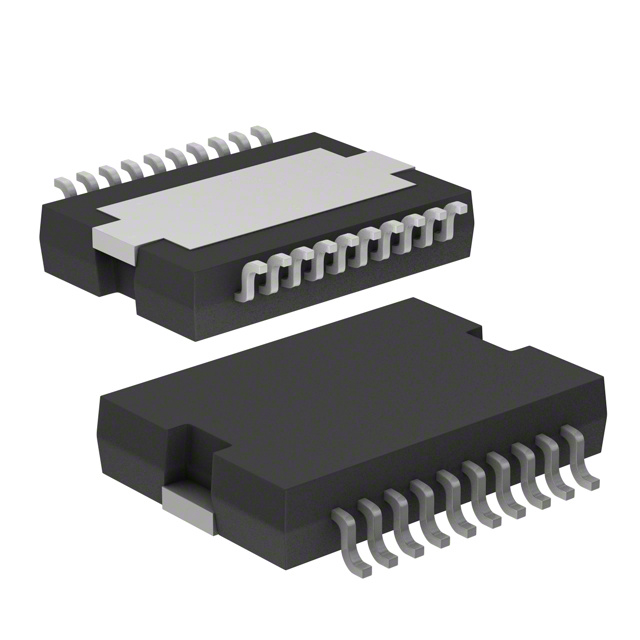

Trans MOSFET N-CH 65V 20Pin DSO T/R

Summary of Features:

.

Designed for wide RF bandwidth and low memory effects

.

Broadband input on-chip matching

.

Typical two-carrier WCDMA performance at 2140MHz, 28V, 7W avg,

\- Gain = 28.5dB

\- Power Added Efficiency = 33%

\- IMD3 = –32dBc

.

Typical CW performance at 2140MHz, 28V

\- Output power at P1dB ~ 20W

\- Efficiency > 49%

.

Integrated ESD protection. Meets HBM Class 1B minimum, per JESD22-A114F

.

Capable of handling 10:1 VSWR @ 28 V, 15 W CW output power

.

Thermally-enhanced RoHS-compliant package
