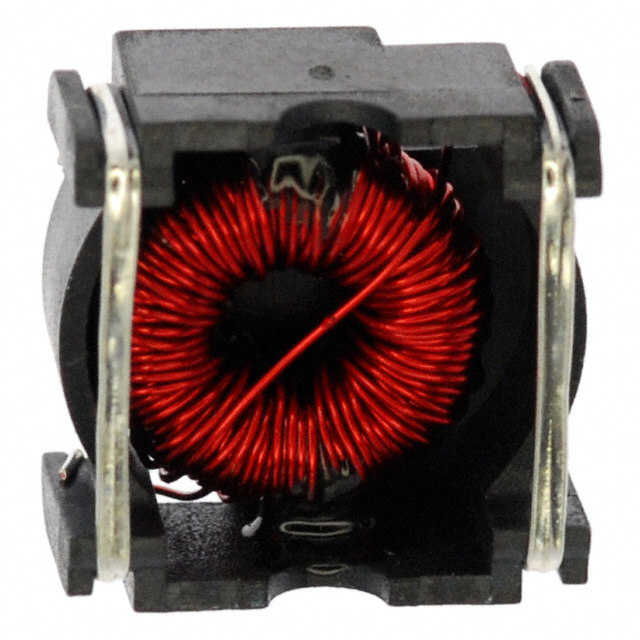

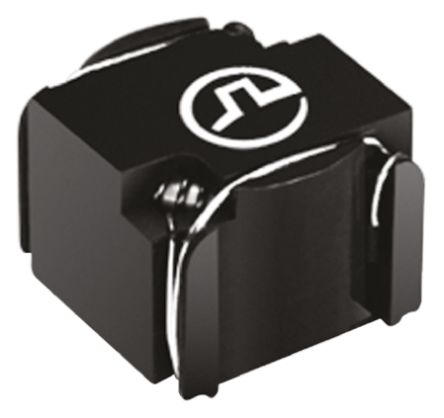

PE-53822SNLT

150KHz National Semiconductor Simple Switcher 线绕扼流圈脉冲环形电感器设计用于与 National Semiconductors 150kHz Simple Switcher™ 一起使用。 这些环形电感器的基座材料符合 UL 94V-0 易燃性要求，且其性能经过 National Semiconductor 认证。

150KHz National Semiconductor Simple Switcher 线绕扼流圈

脉冲环形器设计用于与 National Semiconductors 150kHz Simple Switcher™ 一起使用。 这些环形电感器的基座材料符合 UL 94V-0 易燃性要求，且其性能经过 National Semiconductor 认证。

得捷:
FIXED IND 54UH 1A 200 MOHM SMD

立创商城:
54uH ±20% 200mΩ

贸泽:
Fixed Inductors 54 UH 20% 1A TOROID

艾睿:
This power PE-53822SNLT surface mount inductor from Pulse is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 130 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 14.48 mm long, 9.14 mm tall and 14.35 mm deep. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 200mTyp Ohm. It has a tolerance of 20%. This device utilizes wirewound technology. It has an inductance of 54u H.

安富利:
Ind Power Wirewound 54uH 20% 1A T/R

Verical:
Inductor Power Wirewound 54uH 20% 1A 200mOhm DCR T/R

CDI:
SIMPLE SWITCHER INDUCTOR, NL
