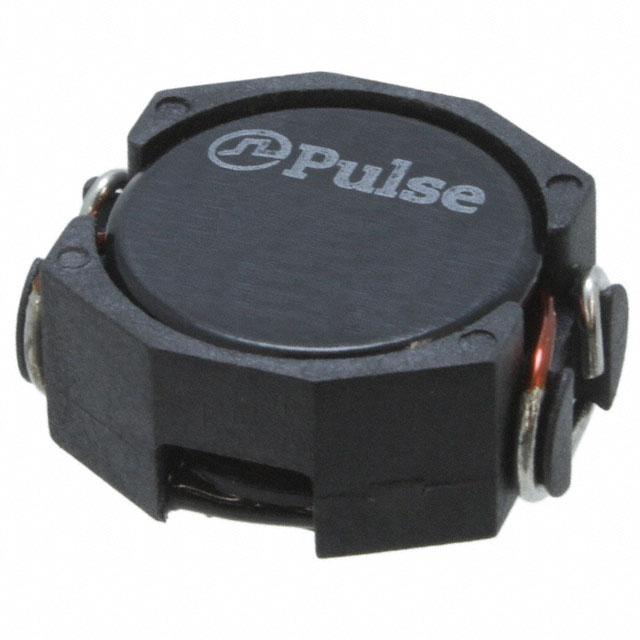

PB2020.223NLT

22uH ±20% 8.1A

22µH Unshielded Wirewound Inductor 8.1A 20mOhm Max Nonstandard

立创商城:
22uH ±20% 13A

得捷:
FIXED IND 22UH 8.1A 20 MOHM SMD

艾睿:
This power PB2020.223NLT surface mount inductor from Pulse is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 130 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 22u/19uRated H. It has a tolerance of 20%. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 8.1 A with a maximum resistance of 20m Ohm. This product is 23.87 mm long, 10.16 mm tall and 20.83 mm deep.

安富利:
Ind Power Unshielded Wirewound 22uH 20% 8.1A T/R

Chip1Stop:
Ind Power Unshielded 22uH 20% 8.1A T/R

Verical:
Inductor Power Unshielded Wirewound 22uH/19uH 20% 8.1A 0.02Ohm DCR T/R

CDI:
UNSHIELDED DRUM CORE INDUCTOR, DO70

Win Source:
FIXED IND 22UH 8.1A 20 MOHM SMD / 22 µH Unshielded Wirewound Inductor 8.1 A 20mOhm Max Nonstandard
