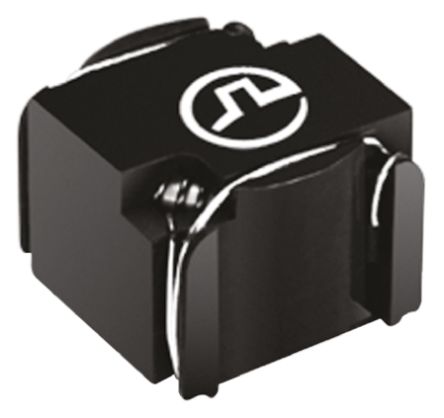

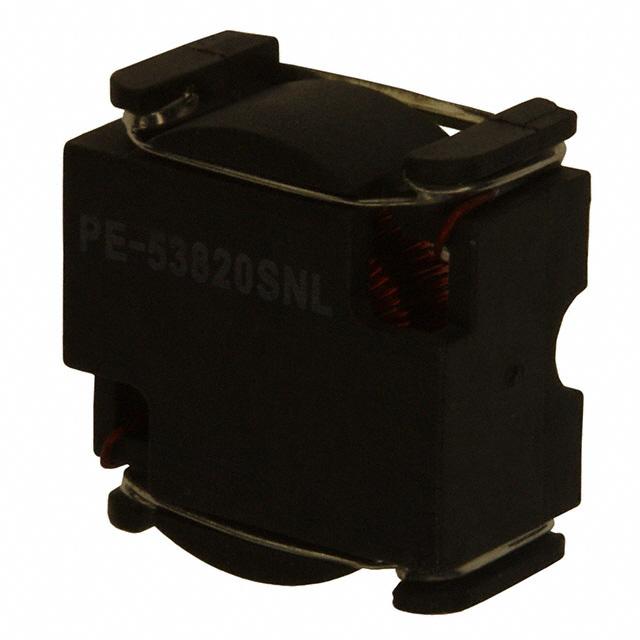

PE-53820SNL

150KHz National Semiconductor Simple Switcher 线绕扼流圈脉冲环形电感器设计用于与 National Semiconductors 150kHz Simple Switcher™ 一起使用。 这些环形电感器的基座材料符合 UL 94V-0 易燃性要求，且其性能经过 National Semiconductor 认证。

150KHz National Semiconductor Simple Switcher 线绕扼流圈

脉冲环形器设计用于与 National Semiconductors 150kHz Simple Switcher™ 一起使用。 这些环形电感器的基座材料符合 UL 94V-0 易燃性要求，且其性能经过 National Semiconductor 认证。

立创商城:
115uH ±20% 400mΩ

得捷:
FIXED IND 115UH 670MA 400 MOHM

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power PE-53820SNL surface mount inductor from Pulse is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 130 °C. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 670m A with a maximum resistance of 400mTyp Ohm. It has a tolerance of 20%. It has an inductance of 115u H. This product is 14.48 mm long, 9.14 mm tall and 14.35 mm deep.

安富利:
Ind Power Wirewound 115uH 20% 670mA

Chip1Stop:
Ind Power 115uH 20% 670mA

Verical:
Inductor Power Wirewound 115uH 20% 670mA 400mOhm DCR
