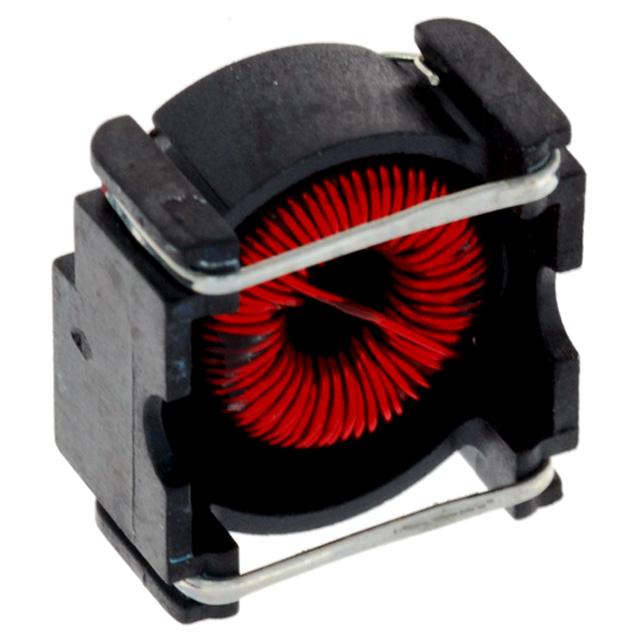

PE-53822SNL

54uH ±20% 1A

Tested and recommended by National Semiconductor

Base material meets flammability requirements of UL 94V-0

Available in surface mount and through hole versions

得捷:
FIXED IND 54UH 1A 200 MOHM SMD

艾睿:
Use this power PE-53822SNL surface mount inductor from Pulse to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 130 °C. This product is 14.48 mm long, 9.14 mm tall and 14.35 mm deep. It has a tolerance of 20%. It has an inductance of 54u H. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 200mTyp Ohm. This device is made with wirewound technology.

安富利:
Ind Power Wirewound 54uH 20% 1A

Chip1Stop:
Inductor Power Wirewound 54uH 20% 1A 200mOhm DCR

Verical:
Inductor Power Toroid 54uH 20% 1A 0.2Ohm DCR
