PTFA091503ELV4R250XTMA1

射频金属氧化物半导体场效应RF MOSFET晶体管 RFP-LDMOS GOLDMOS 8

Summary of Features:

.

Broadband internal matching

.

Typical two-carrier WCDMA performance at 960 MHz, 30 V

\- Average output power = 32 W

\- Linear Gain = 17 dB

\- Efficiency = 29%

\- Intermodulation distortion = –37 dBc

\- Adjacent channel power = –39 dBc

.

Typical CW performance, 960 MHz, 30 V,

\- Output power at P1dB = 150 W

\- Linear Gain = 17 dB

\- Efficiency = 54%

.

Integrated ESD protection. Human Body Model, Class 2 minimum

.

Excellent thermal stability, low HCI drift

.

Capable of handling 10:1 VSWR @ 30 V,150 W CW output power

.

Pb-free, RoHS-compliant

.

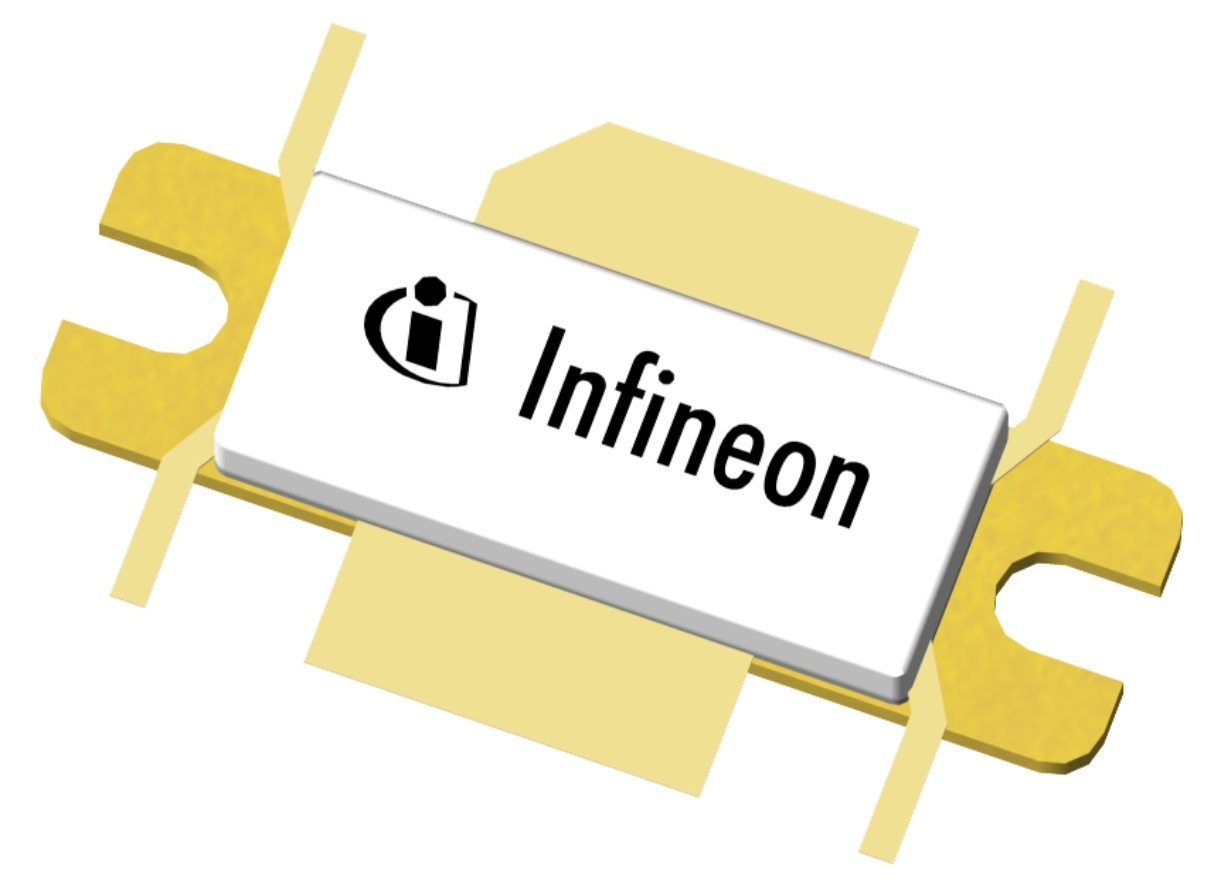

Package: H-33288-6, bolt-down
