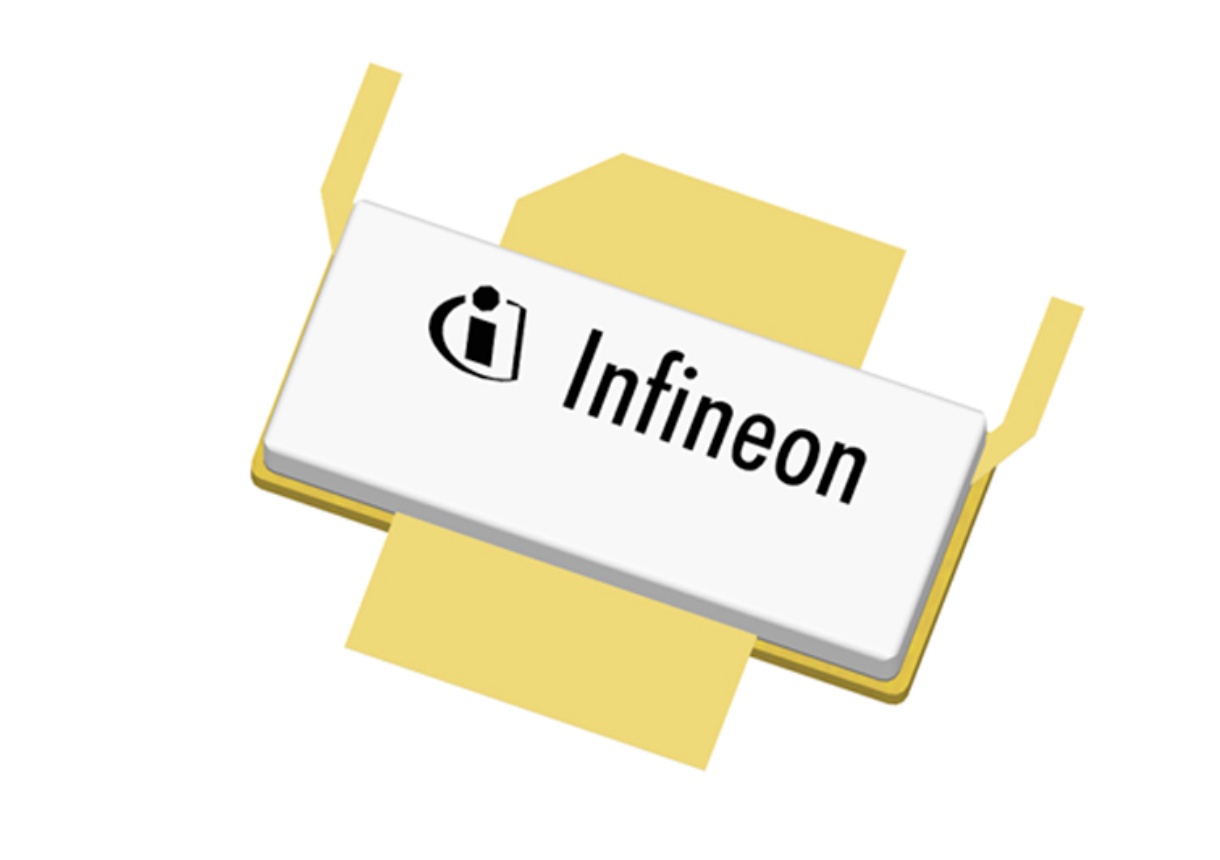

PTFB211503FLV2R250XTMA1

Trans RF MOSFET N-CH 65V 5Pin Case 34288-4/2 T/R

Summary of Features:

.

Broadband internal matching

.

Enhanced for use in DPD error correction systems

.

Typical two-carrier WCDMA performance at 2170 MHz, 30 V,

\- Average output power = 32 W

\- Linear Gain = 18 dB

\- Efficiency = 29%

\- Intermodulation distortion = –34 dBc

\- Adjacent channel power = –37 dBc

.

Typical CW performance, 2170 MHz, 30 V

\- Output power at P1dB = 150 W

\- Efficiency = 55%

.

Increased negative gate-source voltage range for improved performance in Doherty peaking amplifiers

.

Integrated ESD protection

.

Capable of handling 10:1 VSWR @ 30 V, 150 W CW output power

.

Pb-Free and RoHS compliant

.

Package: H-34288-4/2, earless
