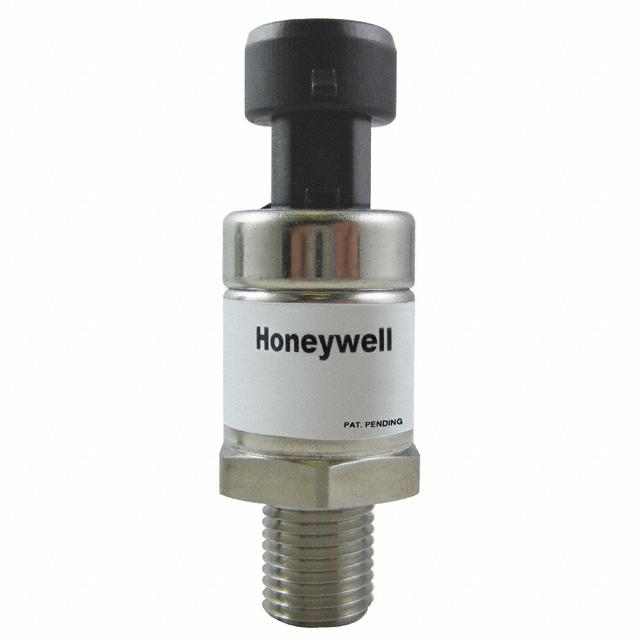

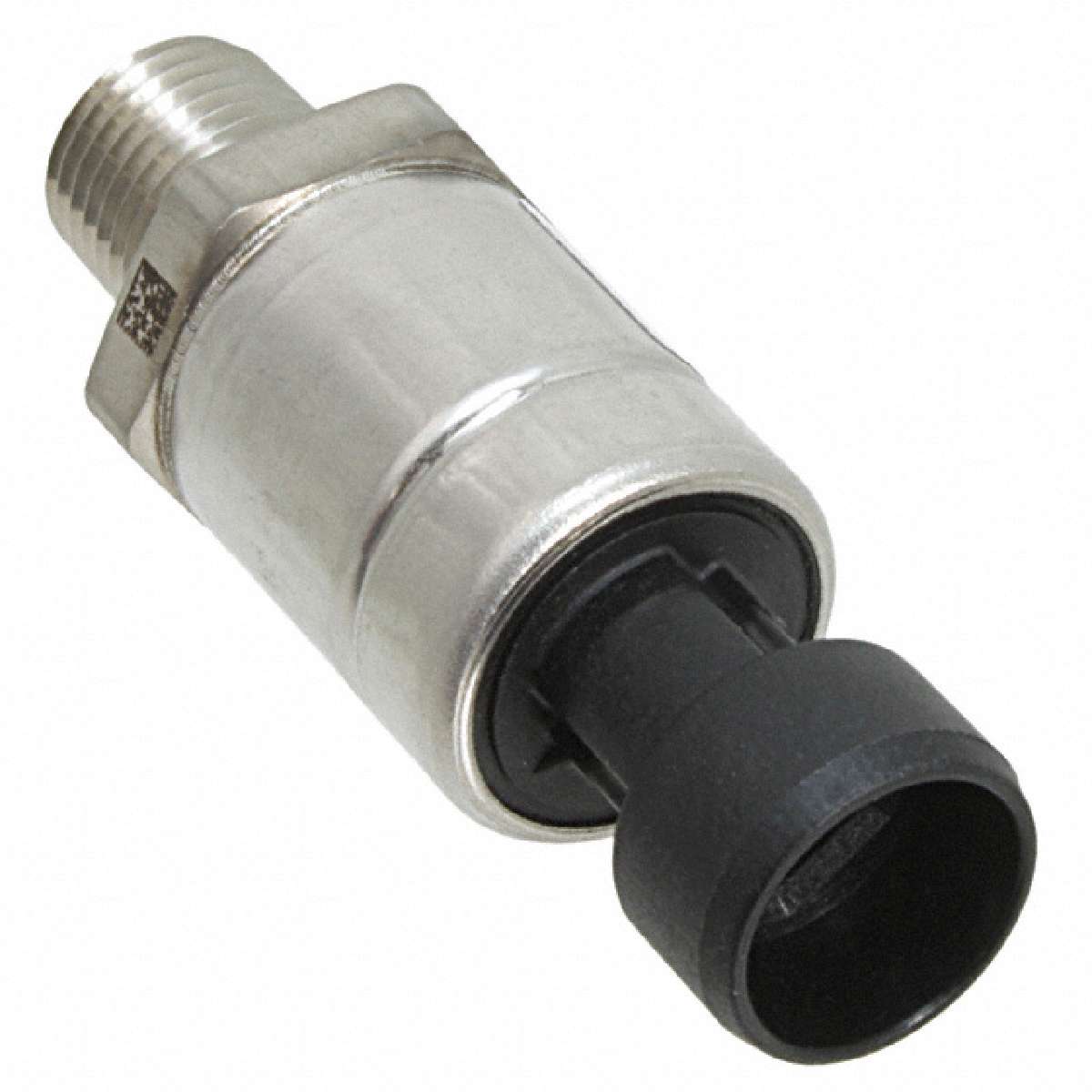

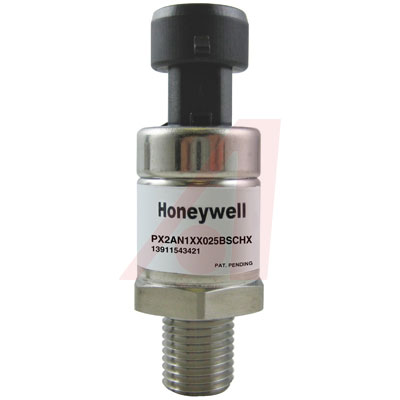

HONEYWELL PX2AN1XX500PSAAX Pressure Sensor, Voltage, 500psi, Sealed Gauge, 5V, 1/4" - 18 NPT, 4mA
** PX2AN Series Pressure Transducer**
Honeywell’s PX2AN Series Heavy Duty Pressure Transducer is a range of highly configurable pressure sensors that use piezoresistive sensing technology with ASIC Application Specific Integrated Circuit signal conditioning in a stainless steel housing. The PX2AN Series is fully calibrated and compensated for offset, sensitivity, temperature effects and non-linearity using the on-board ASIC. The PX2AN Series is compatible with a variety of harsh substances, including brake fluid, engine oil, tap water and compressed air. The PX2AN series will offer protection up to IP69K, and 100 V/m radiated immunity allow for reliable performance in tough environments.
