PX2AN1XX150PABEX

PX2AN1XX150PABEX图片1
PX2AN1XX150PABEX图片2
PX2AN1XX150PABEX图片3

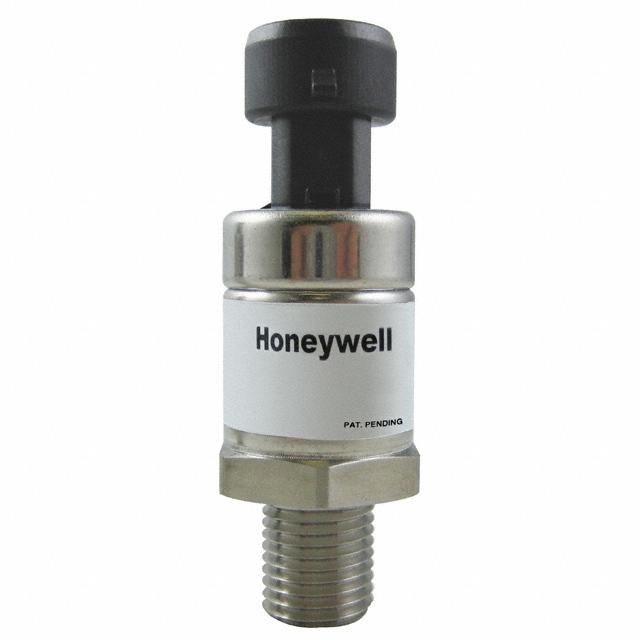

PX2AN1XX150PABEX图片4
PX2AN1XX150PABEX图片5
PX2AN1XX150PABEX概述

Pressure Transducers: Heavy Duty PX2 Series, Delphi Metri-Pack 150 Connector, G1/4 ISO 1179-3Port, 500psi Pressure Range, Sealed Gage Pressure Reference, Ratiometric 5V, 10% Vs to 90% Vs Output

绝对 压力 150PSI(1034.21kPa) 公型 - 1/4"(6.35mm)NPT 0.5V ~ 4.5V 圆柱型


得捷:
PRESSURE TRANSDUCER PSIA


艾睿:
Pressure Sensor 0.5V to 4.5V 0psi to 150psi Absolute Automotive 3-Pin


Chip1Stop:
Pressure Sensor 0.5V to 4.5V 0psi to 150psi Absolute 3-Pin


Verical:
Pressure Sensor 0.5V to 4.5V 0psi to 150psi Absolute 3-Pin


MASTER:
Pressure Transducers: Heavy Duty PX2 Series, Delphi Metri-Pack 150 Connector, G1/4 ISO 1179-3 Port, 500 psi Pressure Range, Sealed Gage Pressure Reference, Ratiometric 5.0 V, 10% Vs to 90% Vs Output


Powell:
PX Pressure


Online Components:
Pressure Transducers: Heavy Duty PX2 Series, Delphi Metri-Pack 150 Connector, G1/4 ISO 1179-3 Port, 500 psi Pressure Range, Sealed Gage ...


Electro Sonic:
Pressure Transducers: Heavy Duty PX2 Series, Delphi Metri-Pack 150 Connector, 1/4-18 NPT Port, 150 psi Pressure Range, Absolute Pressure Reference, ...


PX2AN1XX150PABEX中文资料参数规格
技术参数

输出电压 0.5V ~ 4.5V

工作温度Max 125 ℃

工作温度Min -40 ℃

精度 ±0.25 %

电源电压 8V ~ 30V

封装参数

引脚数 3

封装 Cylinder

外形尺寸

高度 66 mm

封装 Cylinder

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

制造应用 工业自动化

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

HTS代码 9026204000

数据手册

在线购买PX2AN1XX150PABEX
型号: PX2AN1XX150PABEX
描述:Pressure Transducers: Heavy Duty PX2 Series, Delphi Metri-Pack 150 Connector, G1/4 ISO 1179-3Port, 500psi Pressure Range, Sealed Gage Pressure Reference, Ratiometric 5V, 10% Vs to 90% Vs Output
