PV10-10R-D

PANDUIT  PV10-10R-D  环形无焊接线端头

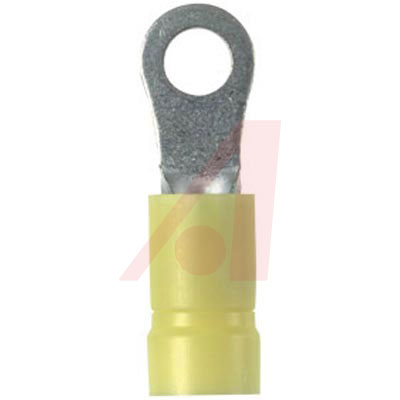

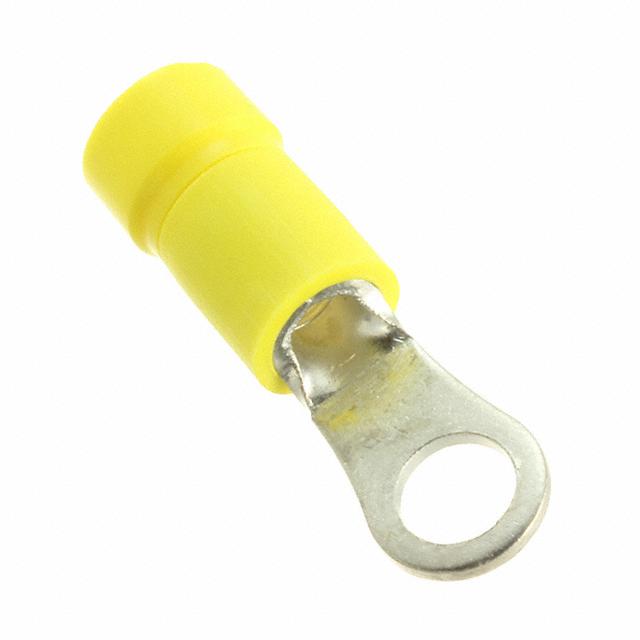

Ring Terminal, Vinyl Insulated - Funnel Entry

Terminals are designed for fast, consistent installation and lasting reliability.

* Fabricated from electrolytically refined copper for high conductivity and tin plated for corrosion resistance

VINYL INSULATED TERMINAL BARREL FEATURES

* Brazed barrel seam assure a quality crimp

* Internal serrations assure good wire contact and maximize tensile strength

VINYL INSULATION FEATURES

* Funnel entry speeds wire insertion for faster assembly and lower installed costs

* Insulation may be crimped to the wire insulation to add strain relief and resistance to pull-out

* Industry standard color coding to indicate wire range

VOLTAGE/TEMPERATURE RATINGS

600V; 105° C 221° F operating temperature
