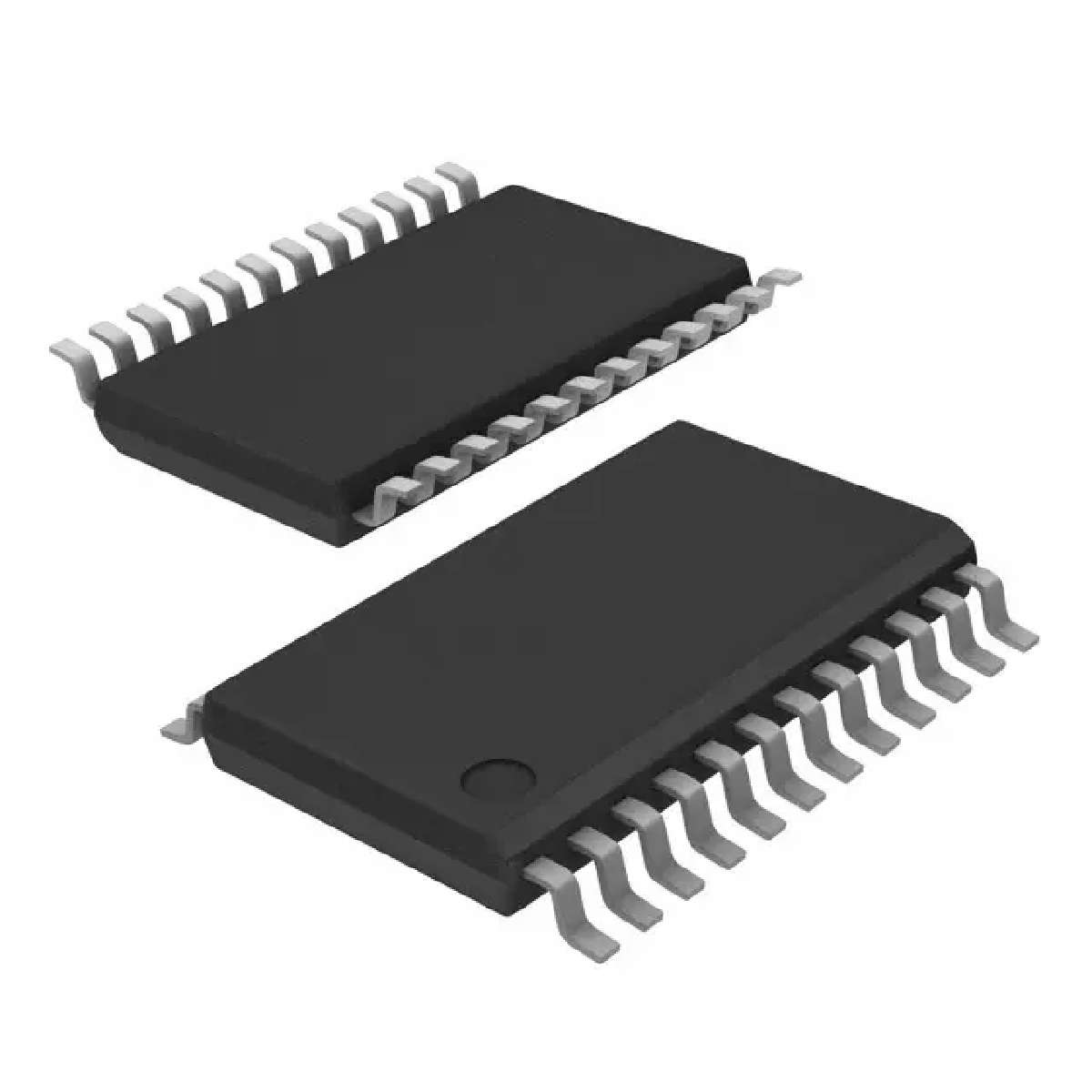

PCA6416APW,118图片9
PCA6416APW,118概述

输入/输出扩展, 16bit, 400 kHz, I2C, SMBus, 1.69 V, 5.5 V, TSSOP

Overview

The PCA6416A is a 16-bit general purpose I/O expander that provides remote I/O expansion for most microcontroller families via the I²C-bus interface.

I/O expanders provide a simple solution when additional I/Os are needed while keeping interconnections to a minimum, for example, in battery-powered mobile applications for interfacing to sensors, push buttons, keypad, etc. In addition to providing a flexible set of GPIOs, it simplifies interconnection of a processor running at one voltage level to I/O devices operating at a different usually higher voltage level. The PCA6416A has built-in level shifting feature that makes these devices extremely flexible in mixed signal environments where communication between incompatible I/O voltages is required. Its wide VDD range of 1.65 V to 5.5 V on the dual power rail allows seamless communications with next-generation low voltage microprocessors and microcontrollers on the interface side SDA/SCL and peripherals at a higher voltage on the port side.

There are two supply voltages for PCA6416A: VDDI²C-bus and VDDP. VDD I²C-bus provides the supply voltage for the interface at the master side for example, a microcontroller and the VDDP provides the supply for core circuits and Port P. The bidirectional voltage level translation in the PCA6416A is provided through VDDI²C-bus. VDDI²C-bus should be connected to the VDD of the external SCL/SDA lines. This indicates the VDD level of the I²C-bus to the PCA6416A. The voltage level on Port P of the PCA6416A is determined by the VDDP.

The PCA6416A register set consists of four pairs of 8-bit Configuration, Input, Output, and Polarity Inversion registers.

At power-on, the I/Os are configured as inputs. However, the system master can enable the I/Os as either inputs or outputs by writing to the I/O configuration bits. The data for each input or output is kept in the corresponding input or output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register, saving external logic gates.

The system master can reset the PCA6416A in the event of a time-out or other improper operation by asserting a LOW in the RESET input. The power-on reset puts the registers in their default state and initializes the I²C-bus/SMBus state machine. The RESET pin causes the same reset/initialization to occur without depowering the part.

The PCA6416A open-drain interrupt INT output is activated when any input state differs from its corresponding Input Port register state and is used to indicate to the system master that an input state has changed.

INT can be connected to the interrupt input of a microcontroller. By sending an interrupt signal on this line, the remote I/O can inform the microcontroller if there is incoming data on its ports without having to communicate via the I²C-bus. Thus, the PCA6416A can remain a simple slave device.

The device Port P outputs have 25 mA sink capabilities for directly driving LEDs while consuming low device current.

One hardware pin ADDR can be used to program and vary the fixed I²C-bus address and allow up to two devices to share the same I²C-bus or SMBus.

MoreLess

## Features

* I²C-bus to parallel port expander

* Operating power supply voltage range of 1.65 V to 5.5 V

* Allows bidirectional voltage-level translation and GPIO expansion between:

* 1.8 V SCL/SDA and 1.8 V, 2.5 V, 3.3 V or 5 V Port P

* 2.5 V SCL/SDA and 1.8 V, 2.5 V, 3.3 V or 5 V Port P

* 3.3 V SCL/SDA and 1.8 V, 2.5 V, 3.3 V or 5 V Port P

* 5 V SCL/SDA and 1.8 V, 2.5 V, 3.3 V or 5 V Port P

* Low standby current consumption:

* 1.5 μA typical at 5 V VDD

* 1.0 μA typical at 3.3 V VDD

* Schmitt-trigger action allows slow input transition and better switching noise immunity at the SCL and SDA inputs:

* Vhys = 0.18 V typical at 1.8 V

* Vhys = 0.25 V typical at 2.5 V

* Vhys = 0.33 V typical at 3.3 V

* Vhys = 0.5 V typical at 5 V

* 5 V tolerant I/O ports

* Active LOW reset input RESET

* Open-drain active LOW interrupt output INT

* 400 kHz Fast-mode I²C-bus

* Input/Output Configuration register

* Polarity Inversion register

* Internal power-on reset

* Power-up with all channels configured as inputs

* No glitch on power-up

* Noise filter on SCL/SDA inputs

* Latched outputs with 25 mA drive maximum capability for directly driving LEDs

* Latch-up performance exceeds 100 mA per JESD 78, Class II

* ESD protection exceeds JESD 22:

* 2000 V Human-Body Model A114-A

* 1000 V Charged-Device Model C101

* Packages offered: TSSOP24, HWQFN24, VFBGA24

## Features

PCA6416APW,118中文资料参数规格
技术参数

输出电压 6.5 V

输出电流 10 mA

针脚数 24

时钟频率 400 kHz

输入/输出数 16 Input

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.65V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 1.69 V

输入电压 1.65V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 24

封装 TSSOP-24

外形尺寸

封装 TSSOP-24

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买PCA6416APW,118
型号: PCA6416APW,118
制造商: NXP 恩智浦
描述:输入/输出扩展, 16bit, 400 kHz, I2C, SMBus, 1.69 V, 5.5 V, TSSOP
替代型号PCA6416APW,118
型号/品牌 代替类型 替代型号对比

PCA6416APW,118

NXP 恩智浦

当前型号

当前型号

PCA9555APW,118

恩智浦

类似代替

PCA6416APW,118和PCA9555APW,118的区别

PCA9535APW,118

恩智浦

功能相似

PCA6416APW,118和PCA9535APW,118的区别
