PCA9534ARGTR

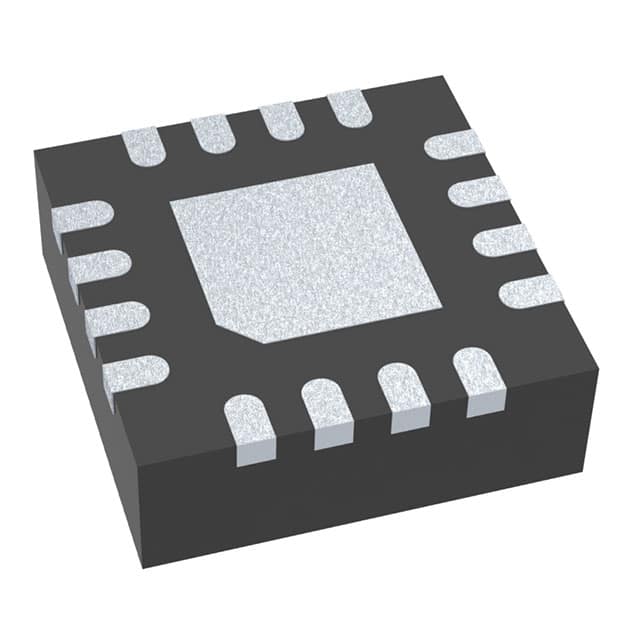

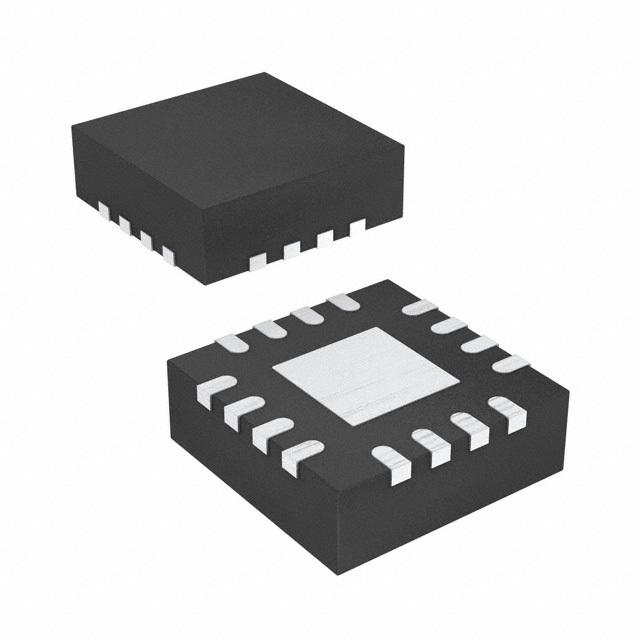

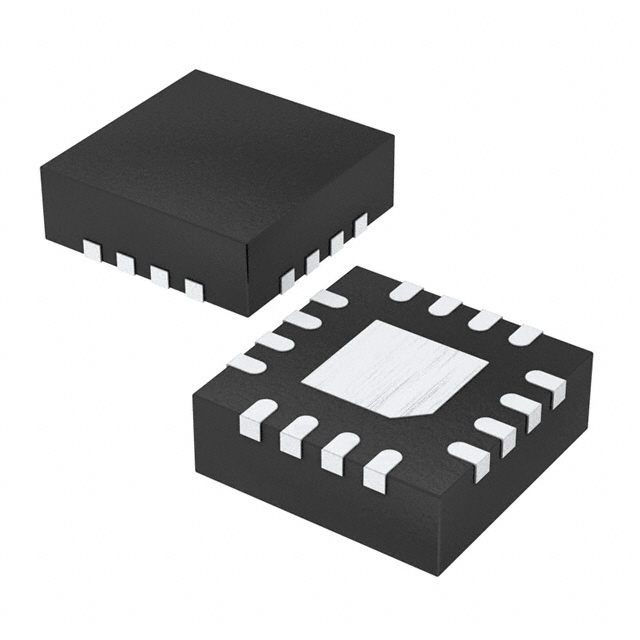

TEXAS INSTRUMENTS  PCA9534ARGTR  输入/输出扩展, 8bit, 400 kHz, I2C, SMBus, 2.3 V, 5.5 V, VQFN

The is an 8-bit I/O Expander for the two-line bidirectional bus I²C is designed for 2.3 to 5.5V VCC operation. It provides general-purpose remote I/O expansion for most microcontroller families via the I²C interface [serial clock SCL, serial data SDA]. The PCA9534A consists of one 8-bit configuration input or output selection, input port, output port and polarity inversion active high or active low register. At power on, the I/Os are configured as inputs. However, the system master can enable the I/Os as either inputs or outputs by writing to the I/O configuration bits. The data for each input or output is kept in the corresponding input or output register. The polarity of the input port register can be inverted with the polarity inversion register. All registers can be read by the system master. The system master can reset the PCA9534A in the event of a timeout or other improper operation by utilizing the power-on reset feature.

.

Open-drain active-low interrupt INT\ output

.

Three hardware address pins allow up to eight devices on the I²C/SMBus

.

Allows up to 16 devices on the I²C/SMBus when used in conjunction with the PCA9534A

.

Input/output configuration register

.

Polarity inversion register

.

Internal power-ON reset

.

Power-up with all channels configured as inputs

.

No glitch on power-up

.

Noise filter on SCL/SDA input

.

Latched outputs with high-current drive maximum capability for directly driving LEDs

.

Latch-up performance exceeds 100mA per JESD 78, class II

.

1µA Maximum low standby current consumption

.

400kHz Fast I²C bus

.

Green product and no Sb/Br

Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
