PI90LV02TEX

3.3 V 400 Mbps 10 kV 表面贴装 差分 线路接收器 - SOT-23-5

Description

The PI90LV02 and PI90LVT02 are single differential line receivers that use low-voltage differential signaling LVDS to support data rates up to 400 Mbps. These products are designed for applications requiring high-speed, low-power consumption, low-noise genera tion, and a small package.

A differential input signal 350mV is translated by the device to a 3.3V CMOS output level. The PI90LVT02 integrates the terminating resistor while the PI90LV02 requires an external resistor.

Features

• Meets or Exceeds the Requirements of ANSI TIA/EIA-644-1995 Standard

• Signaling rates up to 400 Mbps

• Interfaces to LVDS, LVPECL

• Bus-Terminal ESD exceeds 10kV

• Differential Input Voltage Threshold less than 100mV

• Typical Propagation Delay Times of 2.6ns

• Typical Power Dissipation of 40mW @200 MHz

• Low Voltage TTL LVTTL Level is 5V Tolerant

• Open-Circuit Fail Safe

• Output are High Impedance with VCC <1.5V

• Integrated 110-ohm Line Termination Resistor PI90LVT02

• Operates from a 3.3V supply

• Input common-mode voltage range 0V–3.2V

• Industrial Temperature Operating Range: –40°C to 85°C

• Packaging Pb-free & Green available:

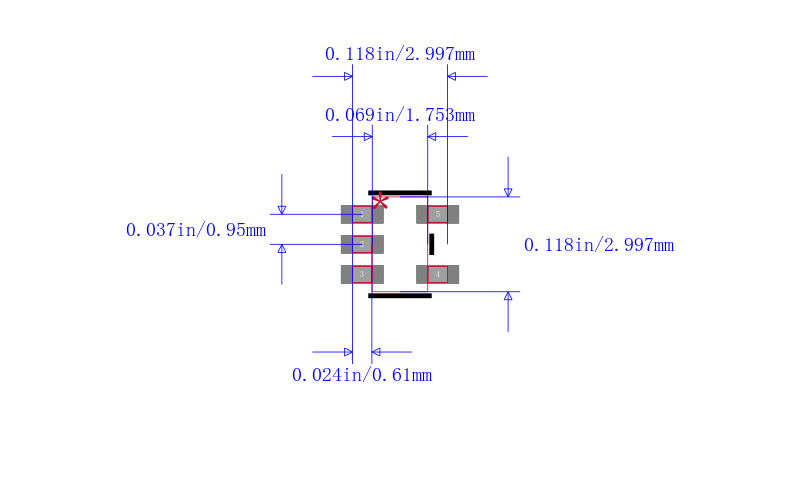

   - 5-pin space-saving SOT23 T

Applications

  Applications include point-to-point and multi-drop baseband data transmissions over impedance media of approximately 100-ohms. The transmission media can be printed circuit board traces, backplanes, or cables.

The PI90LV02 and PI90LVT02 and companion line drivers PI90LV01 and PI90LVB01 provide new alternatives to RS-232, PECL, and ECL devices for high-speed, point-to-point interface applications.
