远程16位I2C和SMBus I / O扩展器,带有中断输出和配置寄存器 REMOTE 16-BIT I2C AND SMBus I/O EXPANDER WITH INTERRUPT OUTPUT AND CONFIGURATION REGISTERS
Description
This 16-bit I/O expander for the two-line bidirectional bus I2C is designed for 2.3-V to 5.5-V VCC operation. It provides general-purpose remote I/O expansion for most microcontroller families via the I2C interface [serial clock SCL, serial data SDA].
The PCA9555 consists of two 8-bit Configuration input or output selection, Input Port, Output Port, and Polarity Inversion active high or active low operation registers. At power on, the I/Os are configured as inputs. The system master can enable the I/Os as either inputs or outputs by writing to the I/O configuration bits. The data for each input or output is kept in the corresponding Input or Output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.
Features
• Low Standby-Current Consumption of 1 μA Max
• I2C to Parallel Port Expander
• Open-Drain Active-Low Interrupt Output
• 5-V Tolerant I/O Ports
• Compatible With Most Microcontrollers
• 400-kHz Fast I2C Bus
• Address by Three Hardware Address Pins for Use of up to Eight Devices
• Polarity Inversion Register
• Latched Outputs With High-Current Drive Capability for Directly Driving LEDs
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model A114-A
– 200-V Machine Model A115-A
– 1000-V Charged-Device Model C101
电源电压DC 2.30V ~ 5.50V
输出接口数 2
时钟频率 400 kHz
电压波节 2.70 V, 3.30 V, 3.60 V, 5.00 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 24

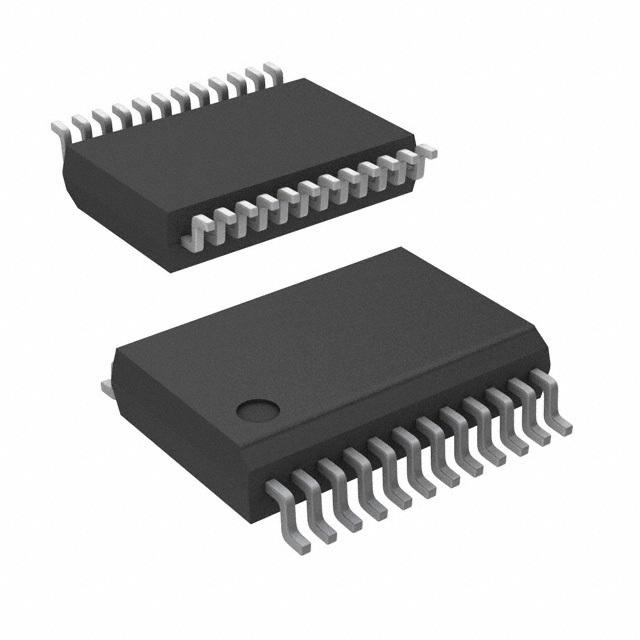

封装 SSOP-24
封装 SSOP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
