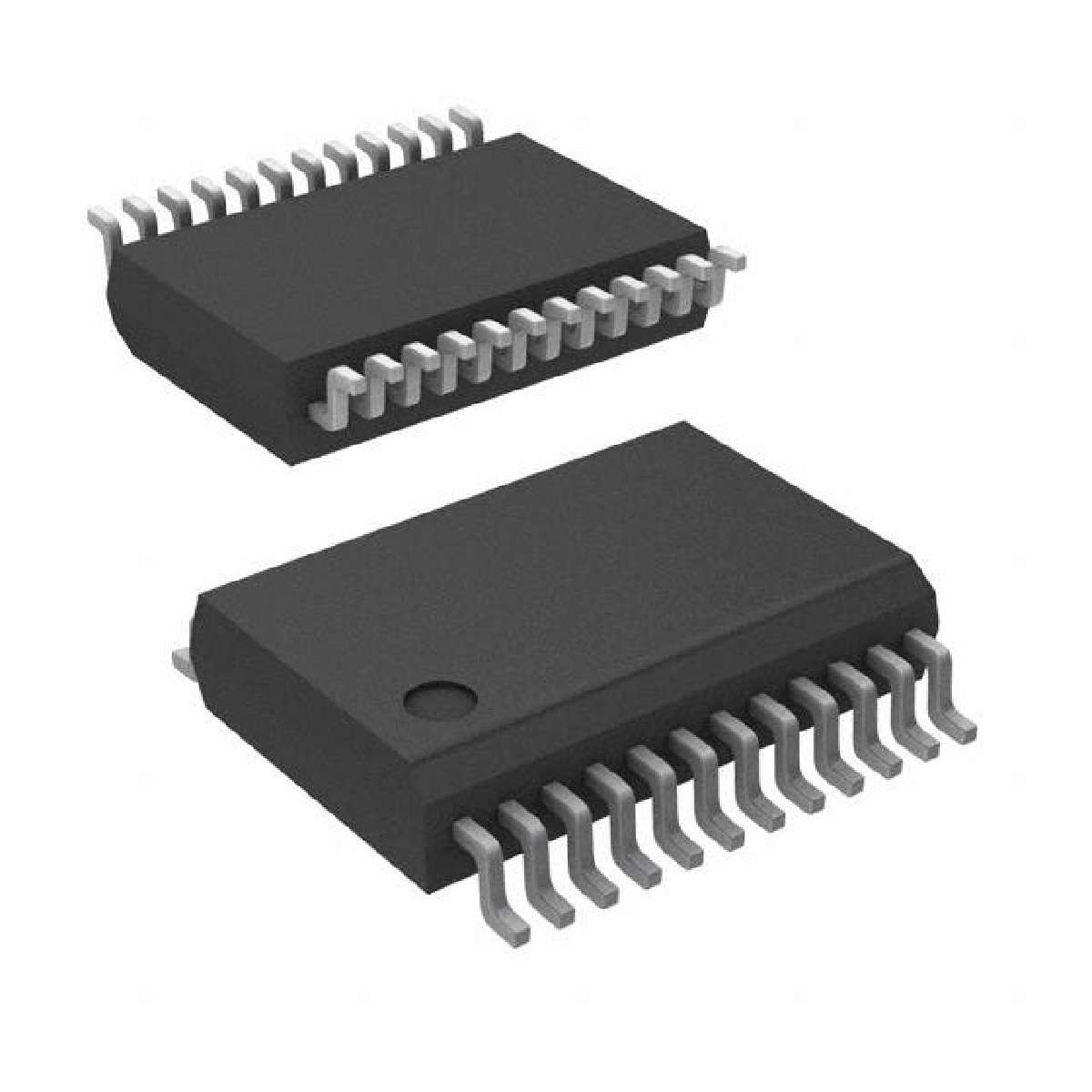

TEXAS INSTRUMENTS PCA9555DB 输入/输出扩展, 16bit, 400 kHz, I2C, SMBus, 2.3 V, 5.5 V, SSOP
The is a 16-bit I/O Expander for the two-line bidirectional bus I²C is designed for 2.3 to 5.5V VCC operation. It provides general-purpose remote I/O expansion for most microcontroller families via the I²C interface [serial clock SCL, serial data SDA]. The PCA9555 consists of two 8-bit configuration input or output selection, input port, output port and polarity inversion active high or active low operation registers. At power on, the I/Os are configured as inputs. The system master can enable the I/Os as either inputs or outputs by writing to the I/O configuration bits. The data for each input or output is kept in the corresponding Input or Output register. The polarity of the input port register can be inverted with the Polarity Inversion register. The device outputs latched have high-current drive capability for directly driving LEDs. All registers can be read by the system master.
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
电源电压DC 2.30V ~ 5.50V
输出接口数 2
针脚数 24
时钟频率 400 kHz
电压波节 2.70 V, 3.30 V, 3.60 V, 5.00 V
输入/输出数 16 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 24
封装 SSOP-24
封装 SSOP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PCA9555DB TI 德州仪器 | 当前型号 | 当前型号 |
PCA9555DBR 德州仪器 | 完全替代 | PCA9555DB和PCA9555DBR的区别 |
PCA9535DWR 德州仪器 | 完全替代 | PCA9555DB和PCA9535DWR的区别 |
PCA9535PWR 德州仪器 | 完全替代 | PCA9555DB和PCA9535PWR的区别 |
