PCA9654EDTR2G

PCA9654EDTR2G图片1
PCA9654EDTR2G图片2
PCA9654EDTR2G图片3
PCA9654EDTR2G图片4

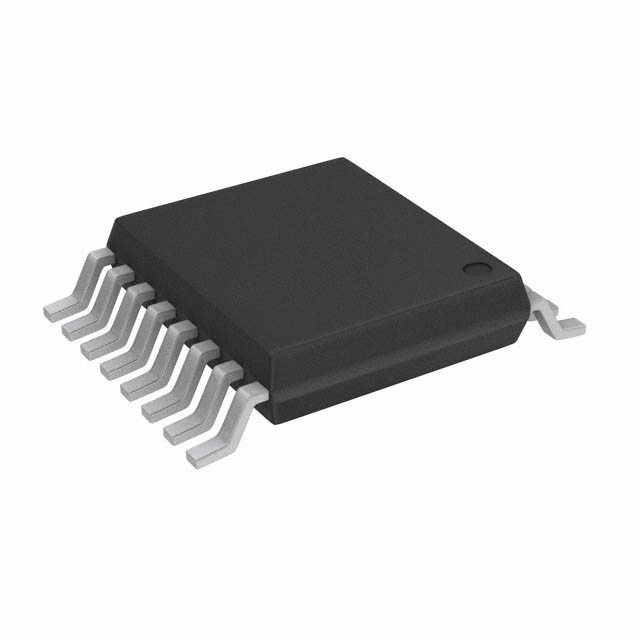

PCA9654EDTR2G图片5
PCA9654EDTR2G概述

输入/输出扩展, 8bit, 1 MHz, I2C, SMBus, 1.65 V, 5.5 V, TSSOP

The PCA9654E provides 8 bits of General Purpose parallel Input/Output GPIO expansion for IThe PCA9654E consists of 8−bit Configuration Input or Output selection; Input, Output and Polarity Inversion active HIGH or active LOW operation registers. The system master may set the I/Os as either inputs or outputs by writing to the I/O configuration bits. The data for each Input or Output is kept in the corresponding Input or Output register. The polarity of the read register can be inverted with the Polarity Inversion register. All registers can be read by the system master.The PCA9654E open−drain interrupt INTb output is activated when any input state differs from its corresponding input port register state and is used to indicate to the system master that an input state has changed. The power−on reset sets the registers to their default values and initializes the device state machine.Three hardware pins AD0, AD1, AD2 vary the fixed IC bus address and allow up to 64 devices to share the same I

Features

---

 |

.
VDD Operating Range: 1.65 V to 5.5 V
.
SDA Sink Capability: 30 mA
.
5.5 V Tolerant I/Os
.
Polarity Inversion Register
.
Active LOW Interrupt Output
.
Low Standby Current
.
Noise Filter on SCL/SDA Inputs
.
No Glitch on Power−up
.
Internal Power−on Reset
.
64 Programmable Slave Addresses Using 3 Address Pins
.
8 I/O Pins which Default to 8 Inputs
PCA9654EDTR2G中文资料参数规格
技术参数

针脚数 16

时钟频率 100 kHz

输入/输出数 8 Input

工作温度Max 125 ℃

工作温度Min -55 ℃

电源电压 1.65V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 1.65 V

封装参数

安装方式 Surface Mount

引脚数 16

封装 TSSOP-16

外形尺寸

封装 TSSOP-16

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册
