P2022DZ概述

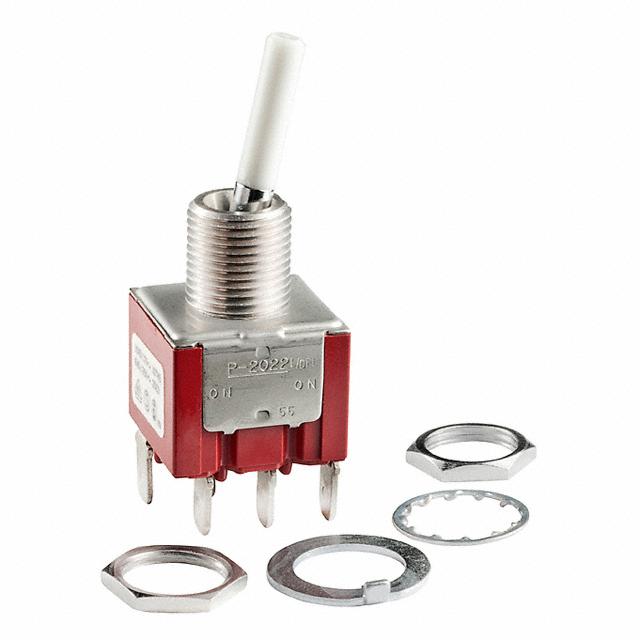

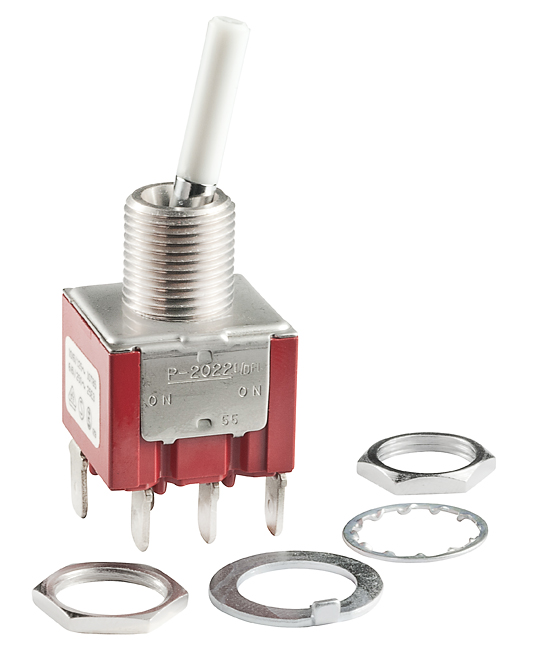

Switch Toggle ON None ON DPDT Round Lever Quick Conn 10A 250VAC Panel Mount with Threads

Control the status of your project with this toggle switch from Switches. It has a DPDT configuration. This device has a maximum current rating of 10 A @ 125VAC. This toggle switch has an operating temperature range of -10 °C to 85 °C. The P2022DZ toggle switch has a quick connect termination style. The maximum AC voltage rating is 250 VAC. This product is 20.5 mm long, 56.1 mm tall and 20 mm deep.

P2022DZ中文资料参数规格
技术参数

排数 2

额定电流Max 10A @125VAC

工作温度Max 85 ℃

工作温度Min -10 ℃

接触电阻Max 10 mΩ

封装参数

安装方式 Panel, Quick Connect

外形尺寸

长度 20.5 mm

宽度 20 mm

高度 56.1 mm

物理参数

触点材质 Silver Alloy

其他

包装方式 Bulk

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买P2022DZ
型号: P2022DZ
制造商: NKK 日本长野
描述:Switch Toggle ON None ON DPDT Round Lever Quick Conn 10A 250VAC Panel Mount with Threads
