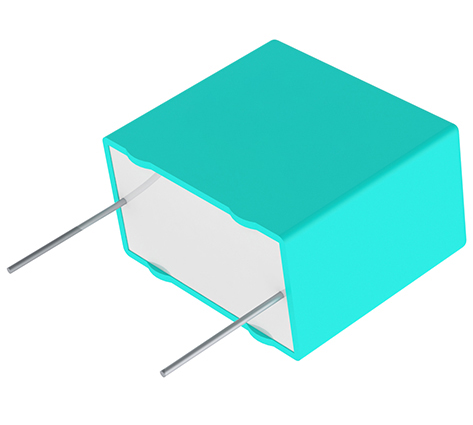

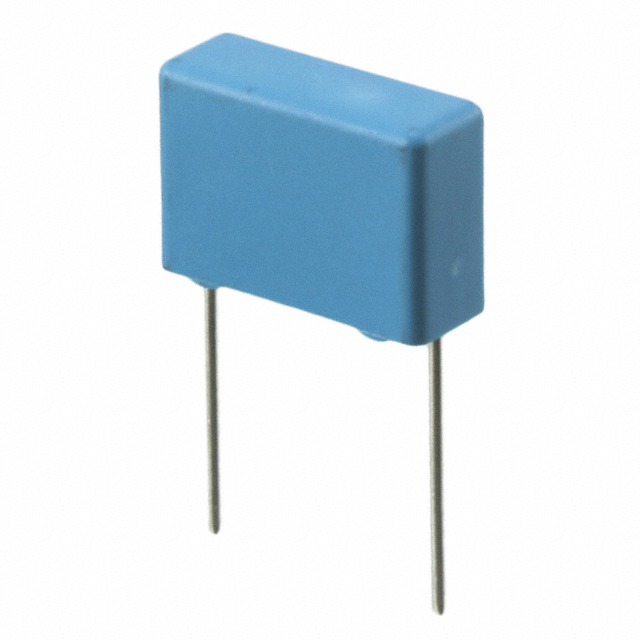

PHE840MB6150KB10R17

等级:X2 150nF ±10% 275VAC

0.15 µF 薄膜器 275V 760V 聚丙烯（PP），金属化 径向

立创商城:
等级:X2 150nF ±10% 275VAC

得捷:
CAP FILM 0.15UF 10% 760VDC RAD

贸泽:
Film Capacitors 275volts 0.15uF 10% LS 15mm

艾睿:
This emi suppression PHE840MB6150KB10R17 film capacitor from Kemet is ideal for voltage smoothing, and would make any filter or audio based design better for the smoothest signal. It can withstand a voltage of 760 VDC|275VAC. This part has a maximum operating temperature of 105 °C. Its capacitance value is 0.15uF. This part has a lead diameter of 0.8 mm and a pitch of 15 mm. The PHE840MB6150KB10R17 part has a radial termination style. It has a tolerance of 10%. This product is 18Max mm long, 12.5Max mm tall and 6.5Max mm deep.

Chip1Stop:
Cap Film Suppression X2 0.15uF 760VDC/275VAC PP 10% 18 X 6.5 X 12.5mm Radial 15mm 105 C Bulk

Verical:
Cap Film Suppression X2 0.15uF 760VDC/275VAC PP 10% 18 X 6.5 X 12.5mm Radial 15mm 105C Bulk

Win Source:
0.15μF Film Capacitor 275V 760V Polypropylene PP, Metallized Radial 0.709" L x 0.256" W 18.00mm x 6.50mm
