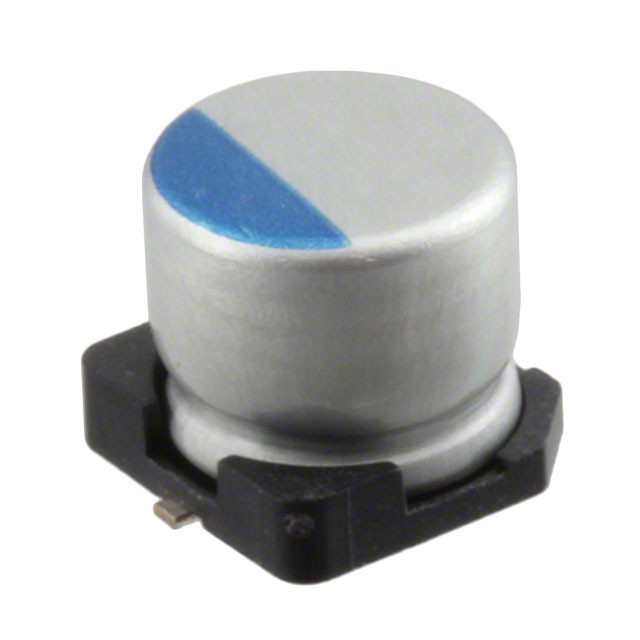

Cap Aluminum Polymer 100uF 6.3VDC 20% 5 X 6mm SMD 0.024Ω 2500mA 2000H 105℃ Automotive T/R
Ensure your integrated circuits operate safely and are protected from unexpected voltage spikes using one of these conductive polymer aluminum solid capacitors from . It can withstand a voltage of 6.3 VDC. It has 2 terminals. Its leakage current is 126@2Min μA. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. It has a tolerance of 20%. This product is 6 mm tall with a diameter of 5 mm.
额定电压DC 6.30 V
电容 100 µF
等效串联电阻ESR 24 mΩ
容差 ±20 %
纹波电流 2500 mA
纹波电流低频 2.5A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount
引脚数 2
封装 SMD
高度 6 mm
直径 6.30 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命（小时） 2000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PCJ0J101MCL1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
RFS0J101MCN1GS 尼吉康 | 类似代替 | PCJ0J101MCL1GS和RFS0J101MCN1GS的区别 |
PCS0J101MCL1GS 尼吉康 | 功能相似 | PCJ0J101MCL1GS和PCS0J101MCL1GS的区别 |
RFS0G101MCN1GS 尼吉康 | 功能相似 | PCJ0J101MCL1GS和RFS0G101MCN1GS的区别 |
