Cap Aluminum Polymer 68uF 10VDC 20% 5 X 6mm SMD 0.028Ω 2310mA 2000H 105℃ Automotive T/R
铝聚合物器 径向,Can - SMD 28 毫欧 105°C 时为 2000 小时
立创商城:
68uF ±20% 10V
得捷:
CAP ALUM POLY 68UF 20% 10V SMD
艾睿:
Ensure your integrated circuits operate safely and are protected from unexpected voltage spikes using one of these PCJ1A680MCL1GS conductive polymer aluminum solid capacitors from Nichicon. It can withstand a voltage of 10 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 6 mm tall with a diameter of 5 mm. It has a tolerance of 20%. Its leakage current is 136@2Min μA.
安富利:
Cap Aluminum 68uF 10V 20% 5 X 6mm SMD 0.028 Ohm 2310mA 2000 hr 105°C T/R
Verical:
Cap Aluminum Polymer 68uF 10VDC 20% 5 X 6mm SMD 0.028 Ohm 2310mA 2000h 105C Automotive T/R
Newark:

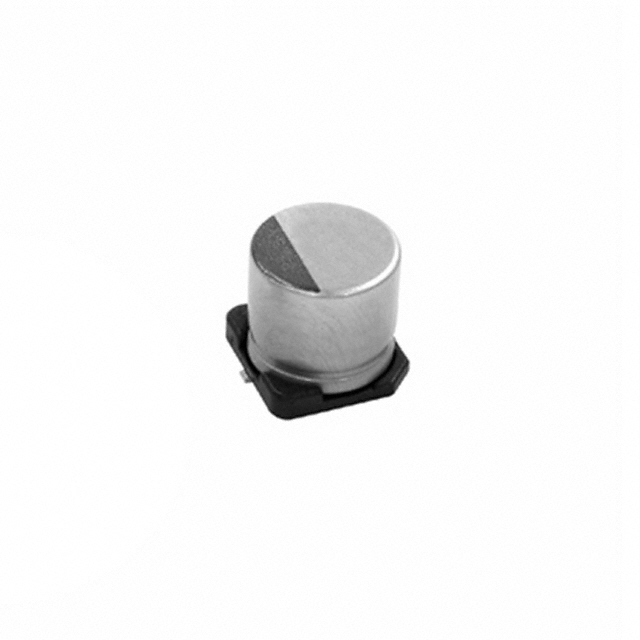

# NICHICON PCJ1A680MCL1GS Electrolytic Capacitor, 68 µF, 10 V, CJ Series, Radial Can - SMD, -55 °C
额定电压DC 10.0 V
电容 68 µF
等效串联电阻ESR 28 mΩ
容差 ±20 %
纹波电流 2310 mA
纹波电流低频 2.31A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
封装 SMD
高度 6 mm
直径 5.00 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命(小时) 2000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PCJ1A680MCL1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
PCS1A680MCL1GS 尼吉康 | 类似代替 | PCJ1A680MCL1GS和PCS1A680MCL1GS的区别 |
