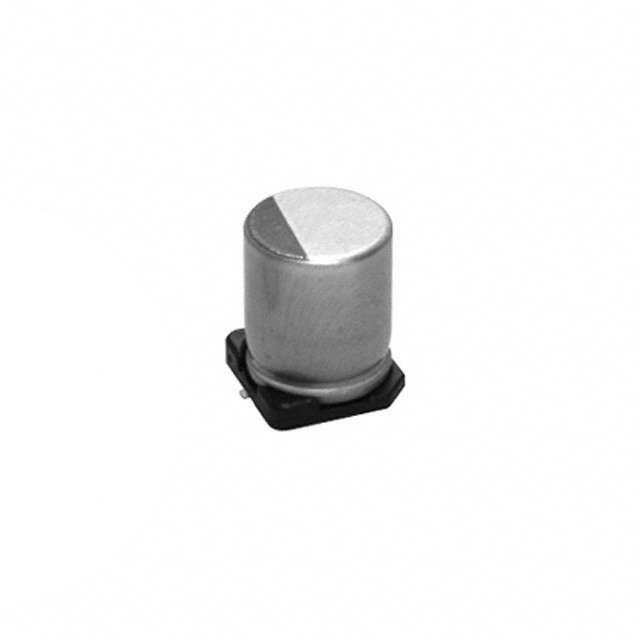

CG 系列 Ø 8 x 7 mm 16 V 150 uF 表面贴装 有机导电聚合物 电容
150 µF 16 V 铝聚合物器 径向,Can - SMD 28 毫欧 105°C 时为 2000 小时
得捷:
CAP ALUM POLY 150UF 20% 16V SMD
立创商城:
150uF ±20% 16V
艾睿:
"Many integrated circuits cannot handle drastic changes in input power; Nichicon&s;s PCG1C151MCL1GS conductive polymer aluminum solid capacitor can help solve this problem. It can withstand a voltage of 16 VDC. It has 2 terminals. Its leakage current is 480@2Min μA. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. This product is 7 mm tall with a diameter of 8 mm."
安富利:
Cap Aluminum 150uF 16V 20% 8 X 7mm SMD 0.028 Ohm 2800mA 2000 hr 105°C T/R
Chip1Stop:
Cap Aluminum 150uF 16V 20% 8 X 7mm SMD 0.028 Ohm 2800mA 2000h 105 C T/R
Verical:
Cap Aluminum Polymer 150uF 16VDC 20% 8 X 7mm SMD 0.028 Ohm 2800mA 2000h 105C Automotive T/R
Newark:
# NICHICON PCG1C151MCL1GS Electrolytic Capacitor, 150 µF, 16 V, CG Series, Radial Can - SMD, -55 °C
额定电压DC 16.0 V
电容 150 µF
等效串联电阻ESR 28 mΩ
容差 ±20 %
纹波电流 2800 mA
纹波电流低频 2.8A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
引脚数 2
封装 SMD
高度 7 mm
直径 8.00 mm
封装 SMD
介质材料 Aluminum Electrolytic
工作温度 -55℃ ~ 105℃
产品生命周期 Not Recommended for New Design
包装方式 Tape & Reel TR
寿命(小时) 2000h @105℃
制造应用 通用, -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PCG1C151MCL1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
RPS0J151MCN1GS 尼吉康 | 功能相似 | PCG1C151MCL1GS和RPS0J151MCN1GS的区别 |
