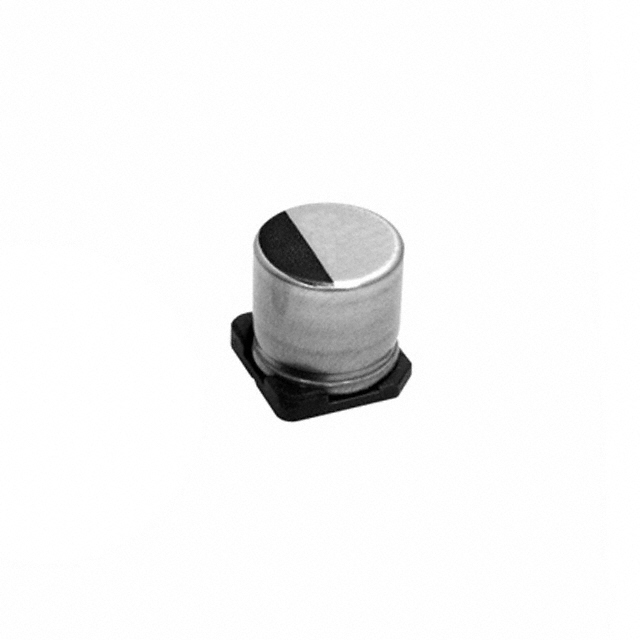

PCF1A561MCL1GS

CF 系列 Ø 10 x 10 mm 10 V 560 uF 表面贴装 有机导电聚合物 电容

铝聚合物器 径向，Can - SMD 15 毫欧 105°C 时为 2000 小时

得捷:
CAP ALUM POLY 560UF 20% 10V SMD

立创商城:
560uF ±20% 10V

艾睿:
The PCF1A561MCL1GS polymer capacitor, made from pure aluminum and developed by Nichicon, will handle all of your circuit&s;s voltage control needs. It can withstand a voltage of 10 VDC. It has 2 terminals. Its leakage current is 1120@2Min μA. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. This product is 10 mm tall with a diameter of 10 mm.

安富利:
Cap Aluminum 560uF 10V 20% 10 X 10mm SMD 0.015 Ohm 4800mA 2000 hr 105°C T/R
