PCV1E820MCL2GS

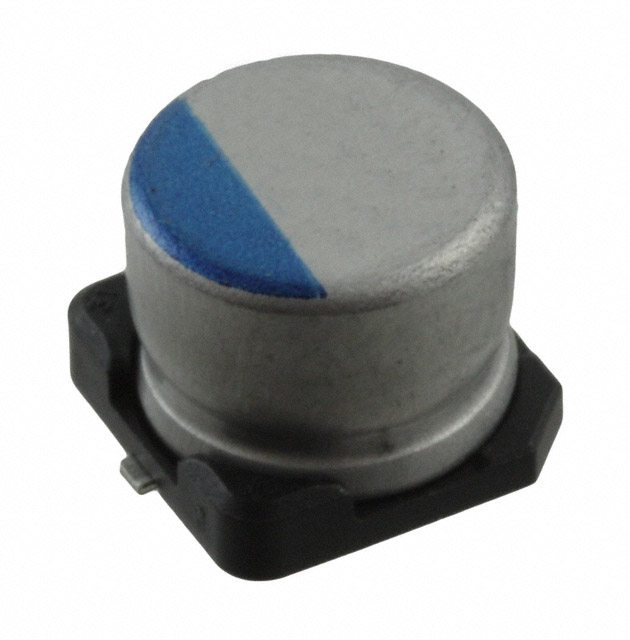

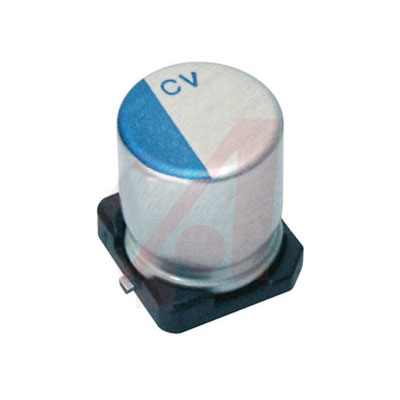

PCV1E820MCL2GS图片1
PCV1E820MCL2GS图片2
PCV1E820MCL2GS图片3
PCV1E820MCL2GS图片4
PCV1E820MCL2GS图片5
PCV1E820MCL2GS图片6
PCV1E820MCL2GS图片7
PCV1E820MCL2GS概述

Cap Aluminum Polymer 82uF 25VDC 20% 8 X 7mm SMD 0.047Ω 1400mA 3000H 105℃ Automotive T/R

82 µF 25 V 铝聚合物器 径向,Can - SMD 47 毫欧 105°C 时为 3000 小时


欧时:
Capacitor Organic 82uF 25V SMT 8x7 mm


立创商城:
82uF ±20% 25V


得捷:
CAP ALUM POLY 82UF 20% 25V SMD


艾睿:
Thanks to Nichicon and their PCV1E820MCL2GS conductive polymer aluminum solid capacitor, you can feel rest assured that your integrated circuit will be protected from sudden changes in the load. It can withstand a voltage of 25 VDC. It has 2 terminals. This product is 7 mm tall with a diameter of 8 mm. Its leakage current is 410@2Min μA. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C.


Allied Electronics:
Capacitor; Aluminum Organic; Cap 82 uF; Tol 20%; Vol-Rtg 25 VDC; SMT; 8x7 mm


安富利:
Cap Aluminum 82uF 25V 20% 8 X 7mm Cylindrical 0.047 Ohm 1400mA 3000 hr. 105°C T/R


PCV1E820MCL2GS中文资料参数规格
技术参数

电容 82 µF

等效串联电阻ESR 47 mΩ

容差 ±20 %

纹波电流 1.4 A

纹波电流低频 1.4A @100kHz

工作温度Max 105 ℃

工作温度Min -55 ℃

额定电压 25 V

封装参数

安装方式 Surface Mount

封装 SMD

外形尺寸

高度 7 mm

封装 SMD

物理参数

工作温度 -55℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

寿命(小时) 3000 h

制造应用 -, 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

PCV1E820MCL2GS引脚图与封装图
PCV1E820MCL2GS引脚图
PCV1E820MCL2GS封装图

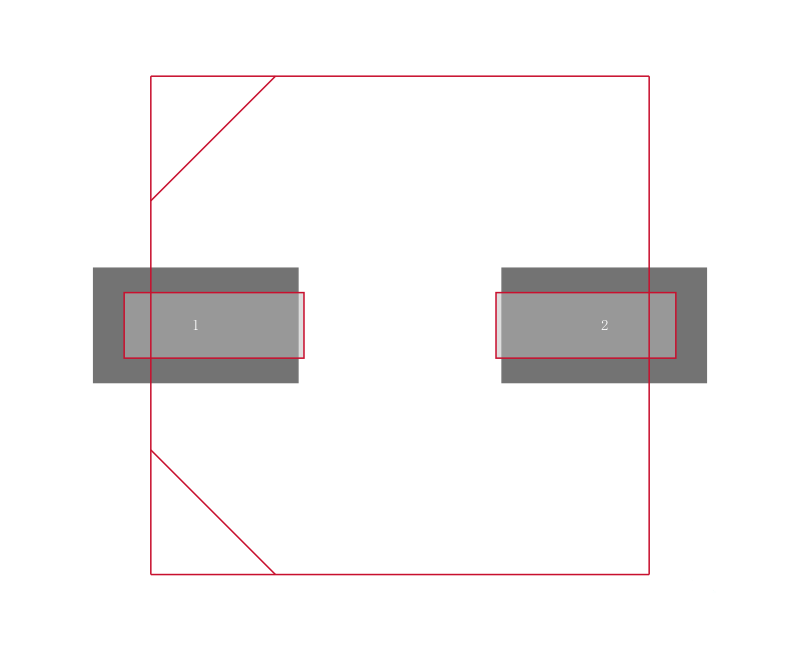

PCV1E820MCL2GS封装焊盘图
