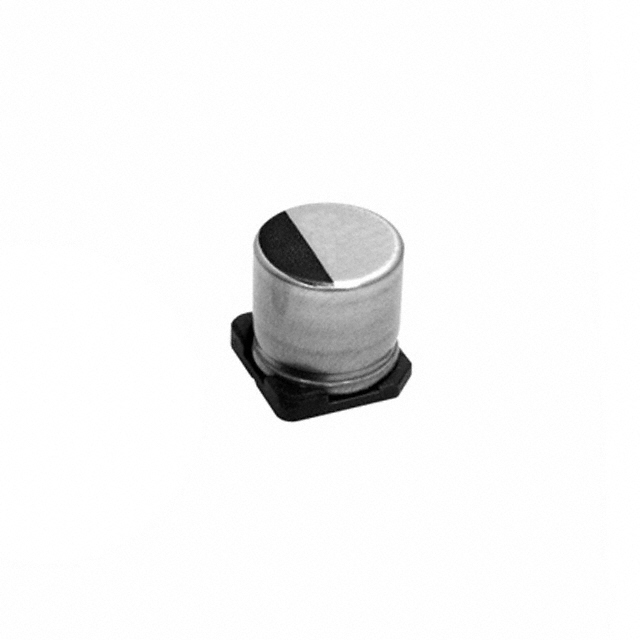

CF 系列 20 V 150 uF 10 x 13 mm 表面贴装 铝 电解电容
Feel rest assured that "s conductive polymer aluminum solid capacitors can help regulate any voltage spikes or drops that may harm sensitive circuitry. It can withstand a voltage of 20 VDC. It has 2 terminals. Its leakage current is 600@2Min μA. This product is 12.7 mm tall with a diameter of 10 mm. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C.
额定电压DC 20 V
电容 150 µF
等效串联电阻ESR 20 mΩ
容差 ±20 %
纹波电流 4320 mA
纹波电流低频 4.32A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 20 V
安装方式 Surface Mount
封装 SMD
长度 12.7 mm
高度 12.7 mm
直径 10.0 mm
封装 SMD
介质材料 Aluminum Electrolytic
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命（小时） 2000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
